The newly upgraded veneer dryer can adjust the drying temperature and time according to the type and thickness of different veneers to avoid cracking and deformation caused by over-drying. At the same time, the intelligent control system of the veneer dryer makes the operation easier. The user only needs to set the relevant parameters, and the equipment can automatically complete the entire drying process, which greatly reduces the complexity and error rate of manual operation and has a high degree of automation. The veneer dryer uses a new axial flow fan to minimize energy consumption, thereby reducing production costs.


Veneer Dryer Machine.jpg


Advantages of Veneer Dryer Machine


1. The well-developed heat exchange system fully improves the energy utilization rate and saves unnecessary energy waste.

2. The control cabinet has automatic temperature control and speed regulation system, which can accurately control the final moisture content.  Simple operation and low failure rate.

3. The temperature in the burner is 40-60 ℃ higher than that of the traditional dryer (steam, thermal oil), and the temperature is controlled at 140-180 ℃, which shortens the drying time and increases the output.

4. After drying, the veneer is smooth, with no cracks, wrinkles, or end ripples.

5. Shrinkage and hardening are kept to a minimum and veneer collapse and honeycomb structure are avoided.

6. We have a professional R&D team which can design different models according to customer’s special requirement.

7. The perfect after-sale service team can supply 24 hours online service.

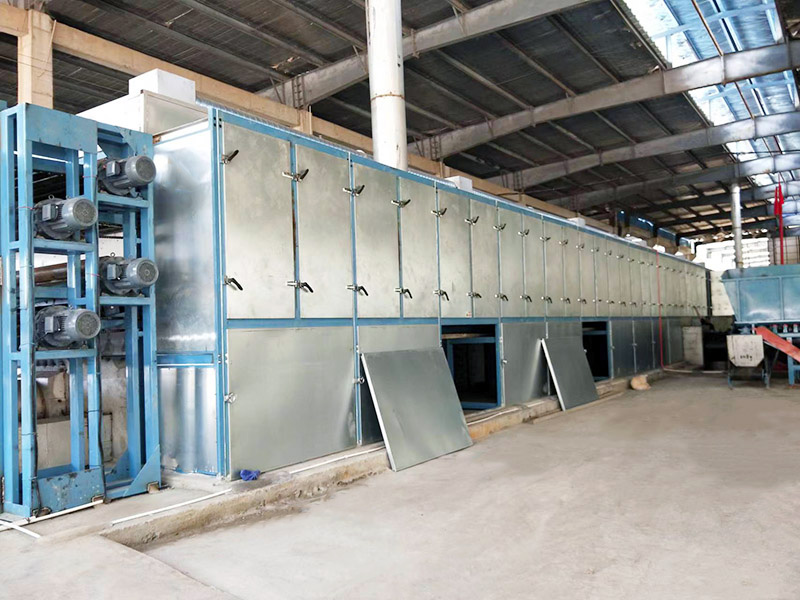

Veneer Dryer Machine.jpg


Product Parameters of Veneer Dryer Machine


Wood species

Veneer Drying capacity (m³/h)

Veneer water moisture

Veneer thickness and size


1 deck veneer dryer

2 deck veneer dryer

4 deck veneer dryer

6 deck veneer dryer



Eucalyptus

0.5-2

1-3.3

2-9.0

15-17

Fresh Veneers (above 70%) to about 0-10%

0.8-8mm

Birch

0.6-2.2

1.2-3.8

2.3-10

15-18

Fresh Veneers (above 70%) to about 0-10%

0.8-8mm

Rubberwood

0.6-2.2

1.2-3.8

2.3-10

15-18

Fresh Veneers (above 60%) to about 0%

0.8-8mm

Poplar

0.6-2.2

1.2-3.8

2.3-10

15-18

Fresh Veneers (above 50%) to about 0-10%

0.8-8mm

Beech

0.6-2.2

1.2-3.8

2.3-10

15-18

Fresh Veneers (above 70%) to about 0-10%

0.8-8mm

Pine

0.6-2.2

1.2-3.8

2.3-10

15-18

Fresh Veneers (above 70%) to about 0-10%

0.8-8mm

Other

0.6-2.2

1.2-3.8

2.3-10

15-18

Fresh Veneers (above 70%) to about 0-10%

0.8-8mm

shine veneer dryer can dry various types of wood. If you want to know more detailed information, please feel free to contact us!

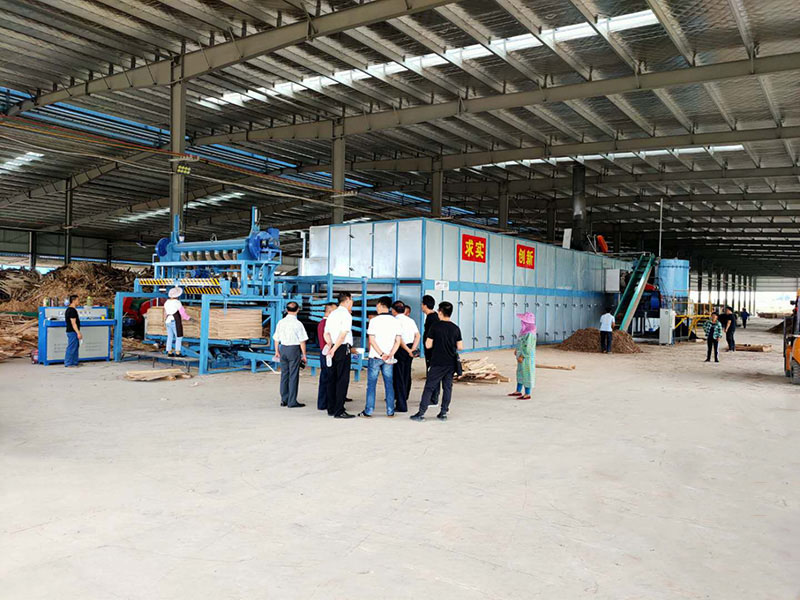

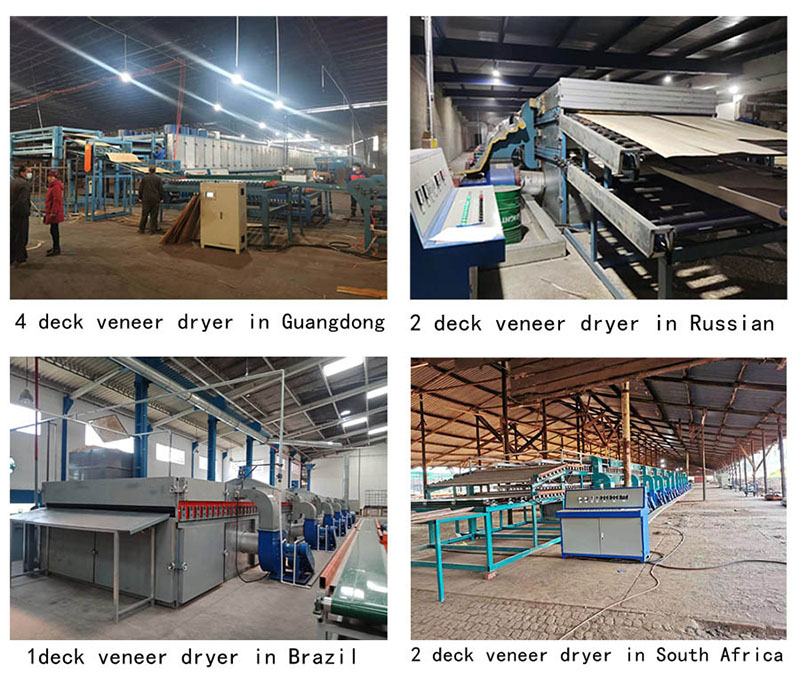

Customer Case


Customer Case.jpg

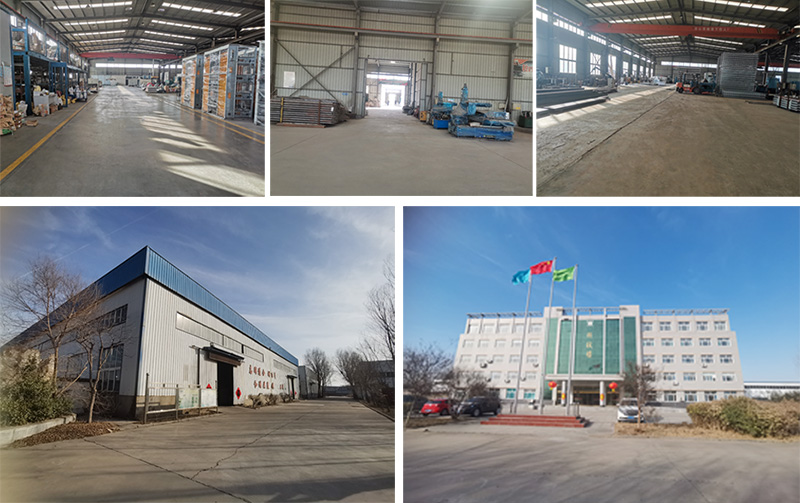

The Factory


The Factory.jpg


Packaging & Shipping


Packaging & Shipping.jpg
