There are two common types of veneer convective veneer dryers: so called web dryers and roller dryers. In web dryers the whole veneer mat is fed after peeling into the dryers, the mat travels through the dryer several times and the veneers are clipped into sheets after the drying. As the veneer is dried immediately after the peeling, this type of drying technology may have an impact on the color of the veneer. The colour of veneer is very importatnt for applications in furniture industry. Roller dryers are more flexible in operation, because the veneer is already cut into sheets before drying. This is important especially in the drying of spruce and other wood species that have a large difference in moisture content between sapwood and heatwood.

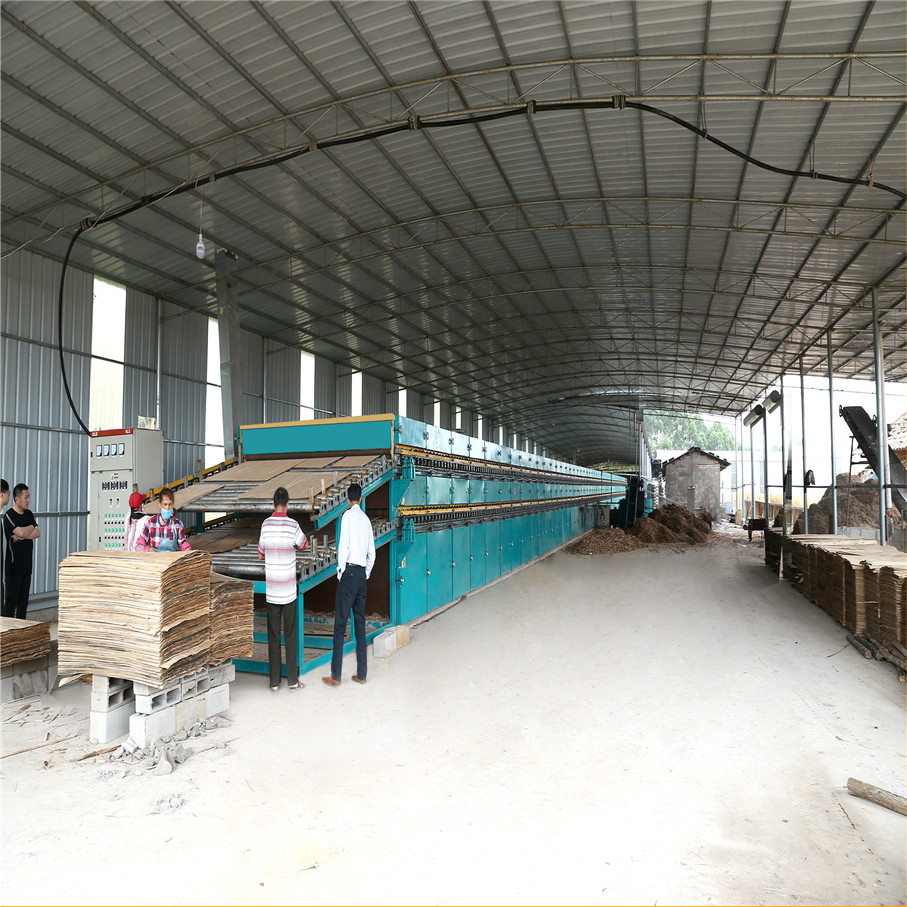

Shine Roller Veneer Dryer Pictures
Technical Parameter for Shine Roller Veneer Dryer
Parameter Model |
DHS44M
| DHS48M | DHS52M | DHS56M | DHS60M |
Work width(m) | 3 | 3 | 3 | 3 | 3 |
Layer | 2 | 2 | 2 | 2 | 2 |
Veneer thickness(mm) | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 |
Heating area (m)
| 40 | 44 | 44 | 48 | 52 |
Cooling area (m) | 4 | 4 | 4+4 | 4+4 | 4+4 |
Initial water content(%) | 50-80 | 50-80 | 50-80 | 50-80 | 50-80 |
Finished water content(%) | 10 | 10 | 10 | 10 | 10 |
Drying capacity (m³/h) | 2.7-3.1 | 3-3.3 | 3.2-3.5 | 3.5-3.8 | 3.8-4.1 |
Heat exhaustion(10000 kcal) | 94.5-108.5 | 105-115.5 | 112-122.5 | 122-132 | 132-143 |
Traction motor power(kw) | 5.5*2 | 7.5*2 | 7.5*2 | 7.5*2 | 7.5*2 |
Hot air fan power (kw) | 11*10 | 11*11 | 11*11 | 11*12 | 11*13 |
Air cooling fan power(kw) | 11 | 11 | 11*2 | 11*2 | 11*2 |
Total power (kw) | 132 | 147 | 158 | 169 | 180 |
Overall size LxWxH(m) | 44*4.5 | 48*4.5 | 52*4.5 | 56*4.5 | 60*4.5 |
