New Biomass Veneer Drying Machine

Category：

Biomass Roller Veneer Dryer
Brand：

SHINE
Browse number：

3863
Release time：

2020-08-07 14:42:45
E-mail:info@sdshinemachinery.com

Detailed Description
Attributes

New Biomass Veneer Drying Machine Introduction

Shine biomass veneer dryers are newly produced drying models and the heating source is biomass burner. Unlike steam boiler, thermal oil or flue gas pipe, the biomass burner eliminates heat loss by directly heating air in side the burner and supply it to the dryer instead of indirect heating of oil or water. The waste wood fuel cost is the lowest compared to the gas, steam or thermal oil. The temperature of the hot air provided by biomass burner is 40-60 degree higher than conventional veneer dryer. And the drying capacity is bigger than steam or thermal oil wood veneer drying machine. The composite cost of the total core veneer drying cost is only about $6-$12/m3 including labor charge, electricity power and fuel cost, etc.

New Biomass Veneer Drying Machine Main Pictures

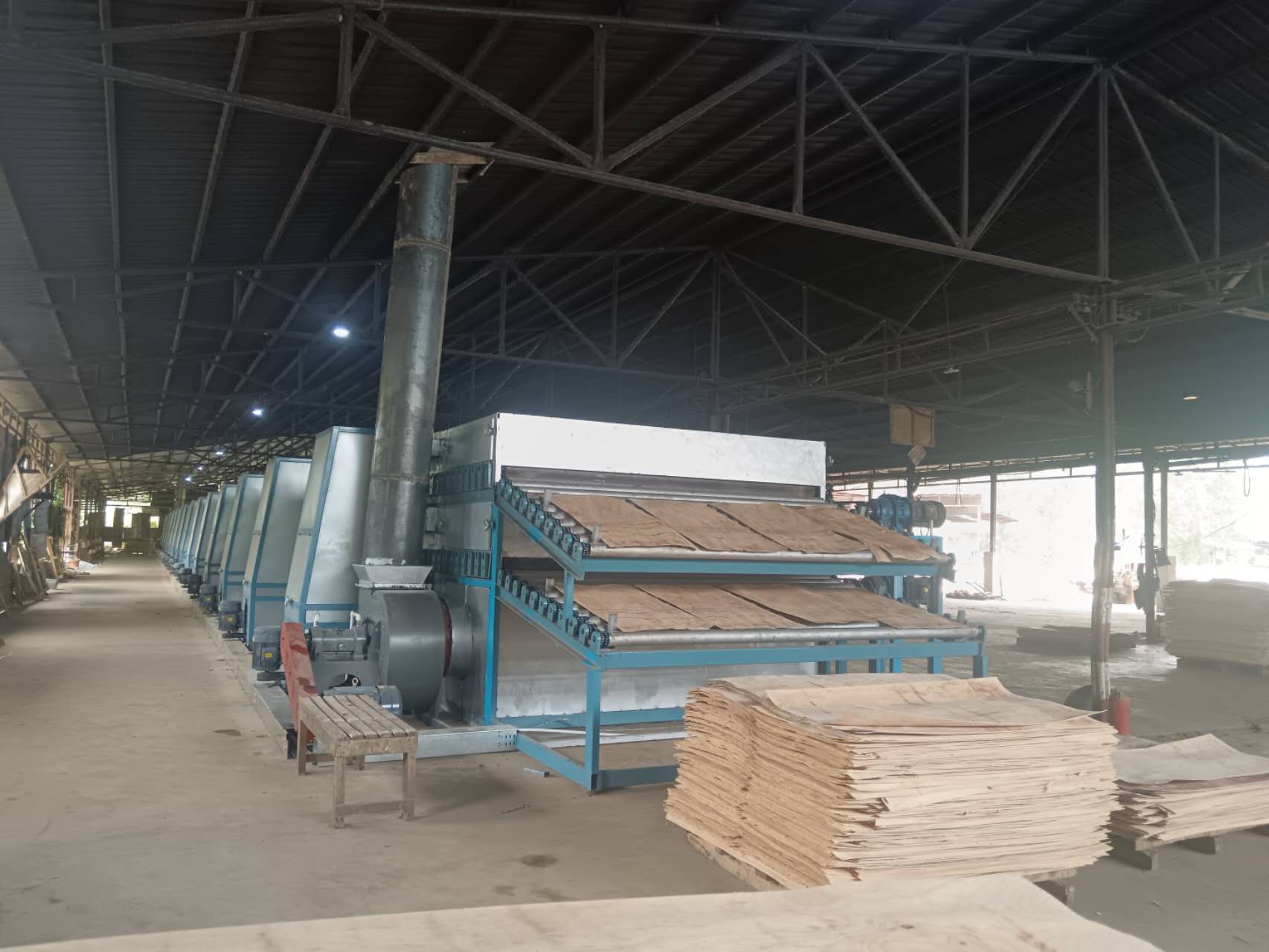

shine machinery-roller veneer dryer.jpg 1 Deck Veneer Drying Machine

Technical Parameter for Shine Best Veneer Drying Machine

Parameter Model	DHS44M	DHS48M	DHS52M	DHS56M	DHS60M
Work width（m）	3	3	3	3	3
Layer	2	2	2	2	2
Veneer thickness（mm）	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5
Heating area （m）	40	44	44	48	52
Cooling area (m)	4	4	4+4	4+4	4+4
Initial water content(%)	50-80	50-80	50-80	50-80	50-80
Finished water content(%)	10	10	10	10	10
Drying capacity (m³/h)	2.7-3.1	3-3.3	3.2-3.5	3.5-3.8	3.8-4.1
Heat exhaustion（10000 kcal）	94.5-108.5	105-115.5	112-122.5	122-132	132-143
Traction motor power(kw)	5.5*2	*7.52**	7.5*2	7.5*2	7.5*2
Hot air fan power (kw)	11*10	*1111**	11*11	11*12	11*13
Air cooling fan power（kw）	11	11	11*2	11*2	11*2
Total power (kw)	132	147	158	169	180
Overall size LxWxH（m）	44*4.5	*484.5**	52*4.5	56*4.5	60*4.5
