Good Quality Roll Tube Veneer Dryer

Category：

Veneer Dryer
Brand：

SHINE
Browse number：

4111
Release time：

2020-03-10 17:16:51
E-mail:info@sdshinemachinery.com

Detailed Description
Attributes

Good Quality Roll Tube Veneer Dryer Introduction

Roll tube veneer dryer adopts the most advanced press and contact drying technique. The green veneer is fed into the running sets of roll tubes. Hot air from jet box or air pipe is blowing the surface and back of the veneer while pressed by the roll tubes to iron and make the veneer dry and flat. The veneer after drying has the uniform moisture content, flat with no buckle or end waviness. It is in good condition before gluing for further process into plywood.

veneer dryer scheme drawing .jpg

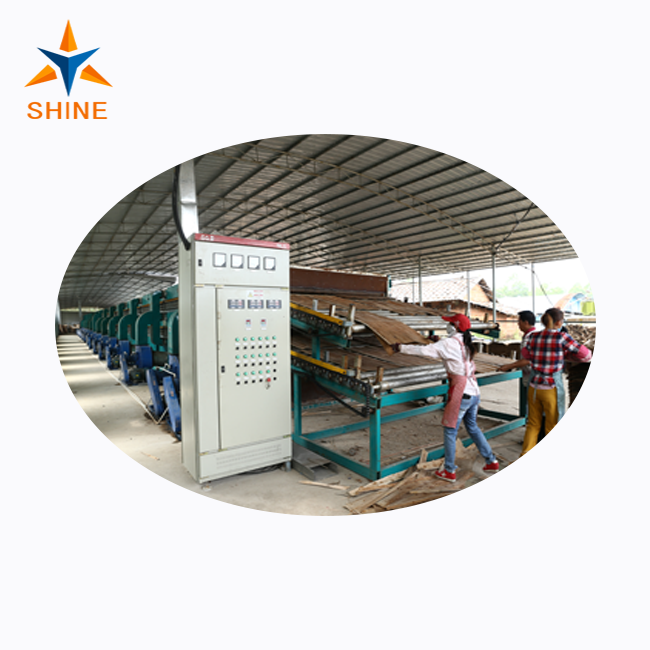

Roll Tube Veneer Dryers Pictures

4Deck Veneer Dryer

Wood Veneer Dryer

Roller Veneer Dryer.jpg 10 Ton Biomass Burner

Technical Parameter for Roll Tube Veneer Dryers

Parameter Model	DHS44M	DHS48M	DHS52M	DHS56M	DHS60M
Work width（m）	3	3	3	3	3
Layer	2	2	2	2	2
Veneer thickness（mm）	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5
Heating area （m）	40	44	44	48	52
Cooling area (m)	4	4	4+4	4+4	4+4
Initial water content(%)	50-80	50-80	50-80	50-80	50-80
Finished water content(%)	10	10	10	10	10
Drying capacity (m³/h)	2.7-3.1	3-3.3	3.2-3.5	3.5-3.8	3.8-4.1
Heat exhaustion（10000 kcal）	94.5-108.5	105-115.5	112-122.5	122-132	132-143
Traction motor power(kw)	5.5*2	*7.52**	7.5*2	7.5*2	7.5*2
Hot air fan power (kw)	11*10	*1111**	11*11	11*12	11*13
Air cooling fan power（kw）	11	11	11*2	11*2	11*2
Total power (kw)	132	147	158	169	180
Overall size LxWxH（m）	44*4.5	*484.5**	52*4.5	56*4.5	60*4.5
