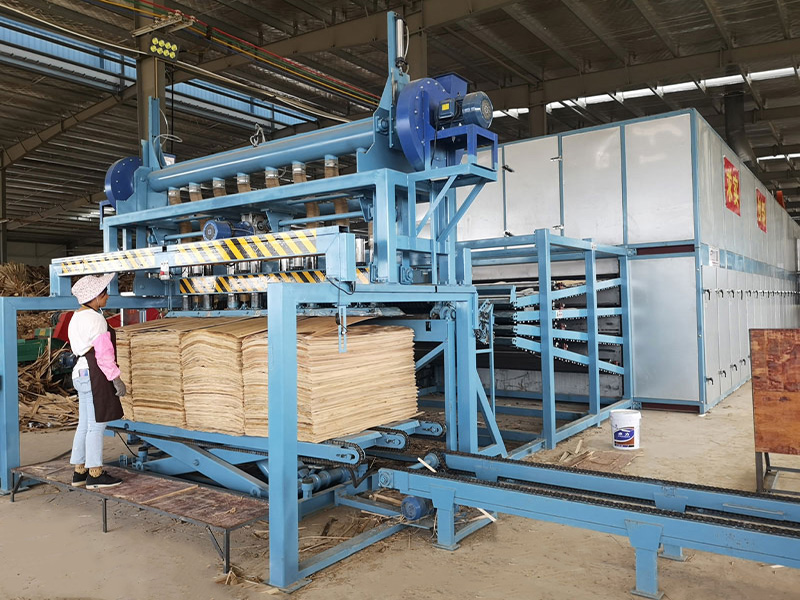

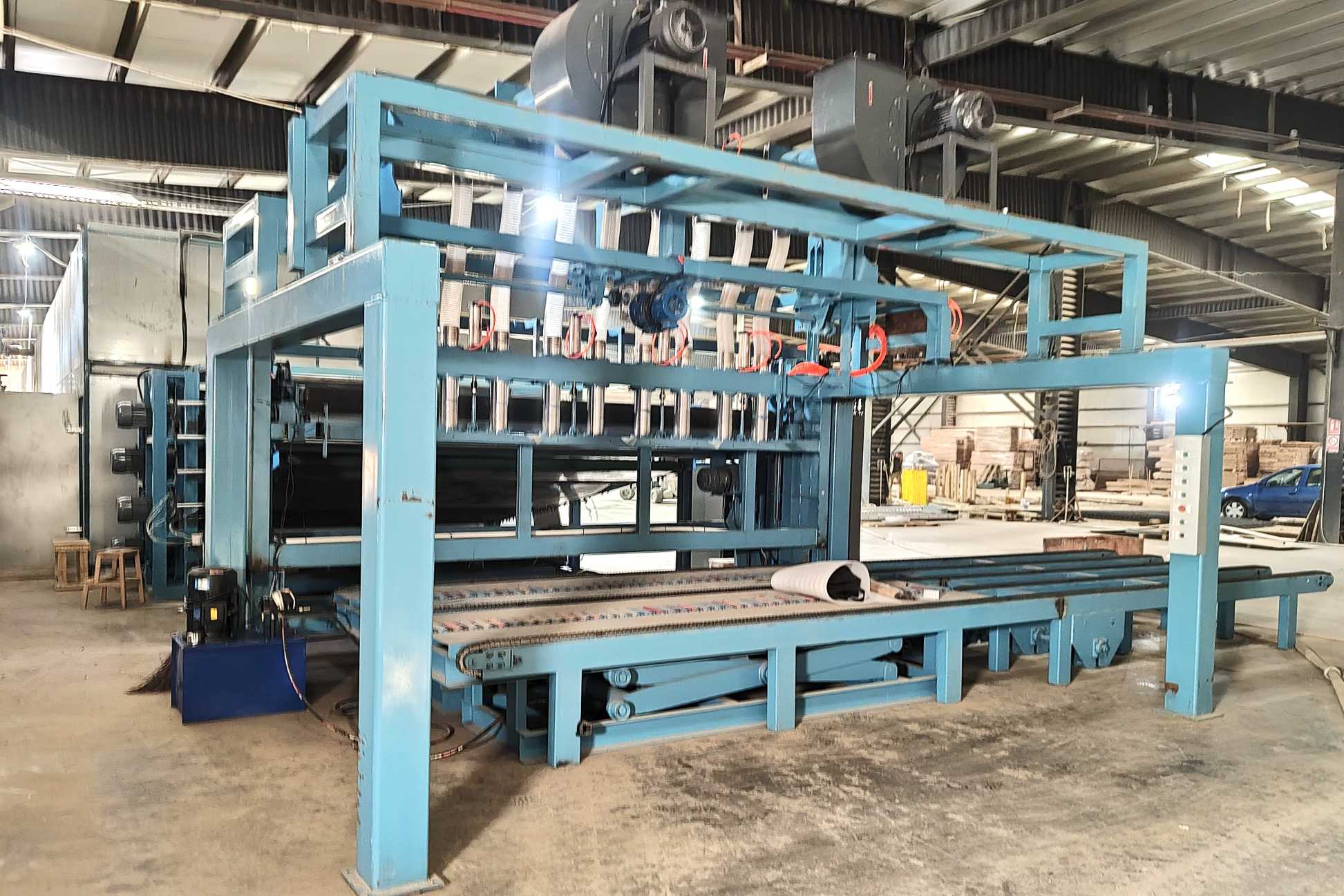

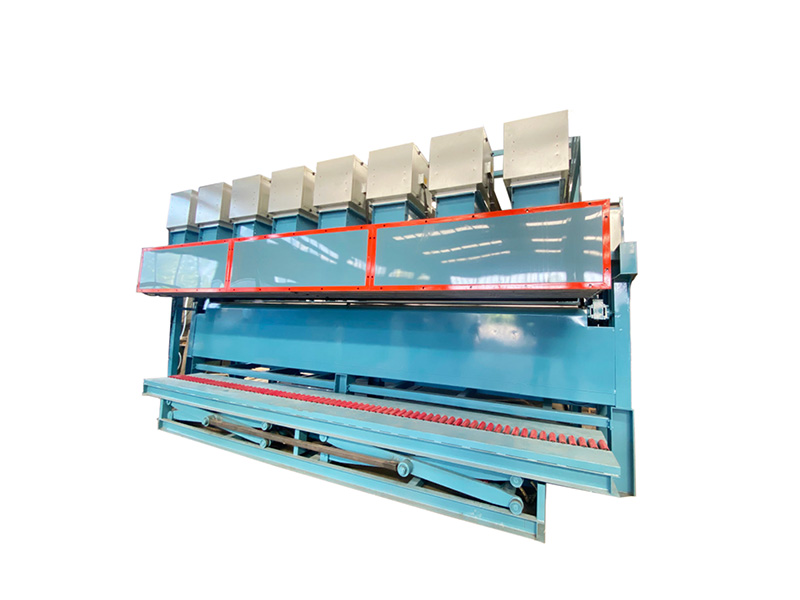

Automatic Veneer Feeder

Revolutionize Your Drying Line: The Automatic Veneer Feeder for Roller Dryers

In the high-stakes world of veneer production, the drying process is a critical bottleneck where efficiency and quality directly impact profitability. The roller dryer, a workhorse of the industry, demands a consistent, orderly, and gentle supply of wet veneer to operate at peak capacity. Traditional manual feeding is not only labor-intensive but also inconsistent, creating a significant bottleneck. Introducing the Automatic Veneer Feeder – a state-of-the-art solution engineered to seamlessly integrate with your roller dryer, transforming your front-end operation into a model of precision, speed, and reliability.

The Core Challenge: Bridging the Gap Between Stack and Dryer

The fundamental task seems simple: move veneer from a stack into the dryer. However, the reality is complex. Wet veneer sheets are delicate, prone to sticking together, and can easily fold, tear, or become misaligned during handling. Manual feeding is slow, unpredictable, and can lead to high rates of breakage and uneven loading. This inconsistency forces the dryer to operate below its thermal potential, wasting energy and limiting overall output. Our Automatic Veneer Feeder is specifically designed to eliminate this bottleneck by automating the entire infeed process with unparalleled precision.

An Inside Look at the Technology: How the Automatic Feeder Works

The Automatic Veneer Feeder is not a simple conveyor; it is an intelligent mechatronic system. Its operation is a continuous, synchronized cycle comprised of several key stages:

1. Automated Stock Presentation: The process begins at the hydraulic or motorized lifting table. A full stack of wet veneer is placed on the platform, which then automatically elevates as needed. Integrated sensors ensure the top sheet always remains at the perfect, pre-defined height for the separation mechanism, guaranteeing consistent operation until the stack is depleted.

2. The Heart of the System: Precision Separation: This is the technological core of the feeder. Unlike rudimentary methods, our system employs an advanced separation head. Utilizing a combination of negative-pressure suction cups and controlled friction rollers, it gently yet firmly isolates the topmost sheet from the stack. The vacuum system is meticulously calibrated to grip with just enough force to lift a single sheet, while the friction elements assist in cleanly pulling it away. This sophisticated dual-mechanism is exceptionally effective at handling even the most challenging, tacky veneers without causing damage or double-feeding.

3. Gentle Transport and Intelligent Alignment: Once separated, the individual veneer sheet is smoothly transferred onto a high-precision conveyor system. As it moves toward the dryer inlet, it passes through an alignment stage. Here, guided brushes or side-belts gently nudge the veneer into perfect positional alignment. This crucial step ensures the sheet is perfectly squared before it enters the dryer, eliminating edge curling, misalignment, and the risk of jams that can cause costly production stoppages.

4. Seamless Integration with the Roller Dryer: The final step involves the precise placement of the veneer onto the dryer's first roller or infeed conveyor. The feeder's control system is in constant communication with the dryer, synchronizing their speeds. This results in a smooth, gap-free transfer that maintains an even and continuous flow of material into the heated chamber, setting the stage for optimal drying performance.

Tangible Benefits: More Than Just Automation

Investing in an Automatic Veneer Feeder delivers a rapid and substantial return on investment across multiple facets of your operation:

• Maximized Dryer Capacity & Output: By providing a non-stop, uniform feed of veneer, the feeder allows your roller dryer to operate continuously at its maximum designed speed and temperature. This directly translates to a significant increase in production volume (measured in square meters per hour), unlocking the full potential of your drying asset.

• Superior Veneer Quality and Yield: Manual handling is a primary cause of veneer damage. Our feeder’s gentle, precision-handling mechanism drastically reduces breaks, folds, and tears. The consistent, single-sheet feeding also prevents overlapping, which is a common cause of uneven drying and dark spots. The result is a higher percentage of first-grade, usable veneer and a more consistent final product.

• Significant Labor and Cost Savings: Automating the most labor-intensive part of the drying line reduces dependency on manual operators. One person can now manage the entire infeed process, freeing up valuable manpower for other tasks and substantially lowering labor costs while improving workplace safety.

• Enhanced Operational Intelligence: Shine feeders are equipped with smart PLC-based control systems featuring intuitive human-machine interface (HMI) touchscreens. Operators can easily set parameters, monitor production rates, and access diagnostic data. The system can log operational data, providing valuable insights for production planning and maintenance scheduling.

  The Automatic Veneer Feeder is more than just a machine; it is a strategic upgrade that elevates your entire drying line. It replaces a variable, error-prone manual process with a relentless, precise, and intelligent automation solution. By ensuring your roller dryer is fed with perfect consistency, it drives higher throughput, superior quality, and lower operational costs.

Stop letting your infeed process be the bottleneck. Contact us today to discover how our Automatic Veneer Feeder can be customized to integrate with your specific roller dryer and revolutionize your production efficiency.
