AI Veneer Vision Inspection System

In the wood processing industry, grading veneer—the thin, delicate wood sheets that form the backbone of plywood, furniture, and decorative panels—has long been a critical yet challenging step. Traditional manual inspection, reliant on human eyes to spot defects like cracks, knots, or color inconsistencies, is plagued by inefficiency, subjectivity, and inconsistency. Fatigue leads to missed flaws, while varying standards result in unstable product quality. Enter Smart Veneer Grading Vision Systems: a revolutionary integration of machine vision and AI that automates, refines, and elevates veneer grading to new heights. By collaborating seamlessly with veneer dryers, these systems transform raw veneer into graded products with unmatched precision, speed, and intelligence—ushering in an era of data-driven quality control for modern wood manufacturers.

How It Works: A Closed-Loop Quality Control Ecosystem

At the heart of Smart Veneer Grading Vision Systems lies a closed-loop quality control process—a seamless cycle of “capture, analyze, decide, and feedback” that ensures every sheet of veneer is evaluated objectively and optimized in real time.

1. Image Capture: Precision Imaging Post-Drying

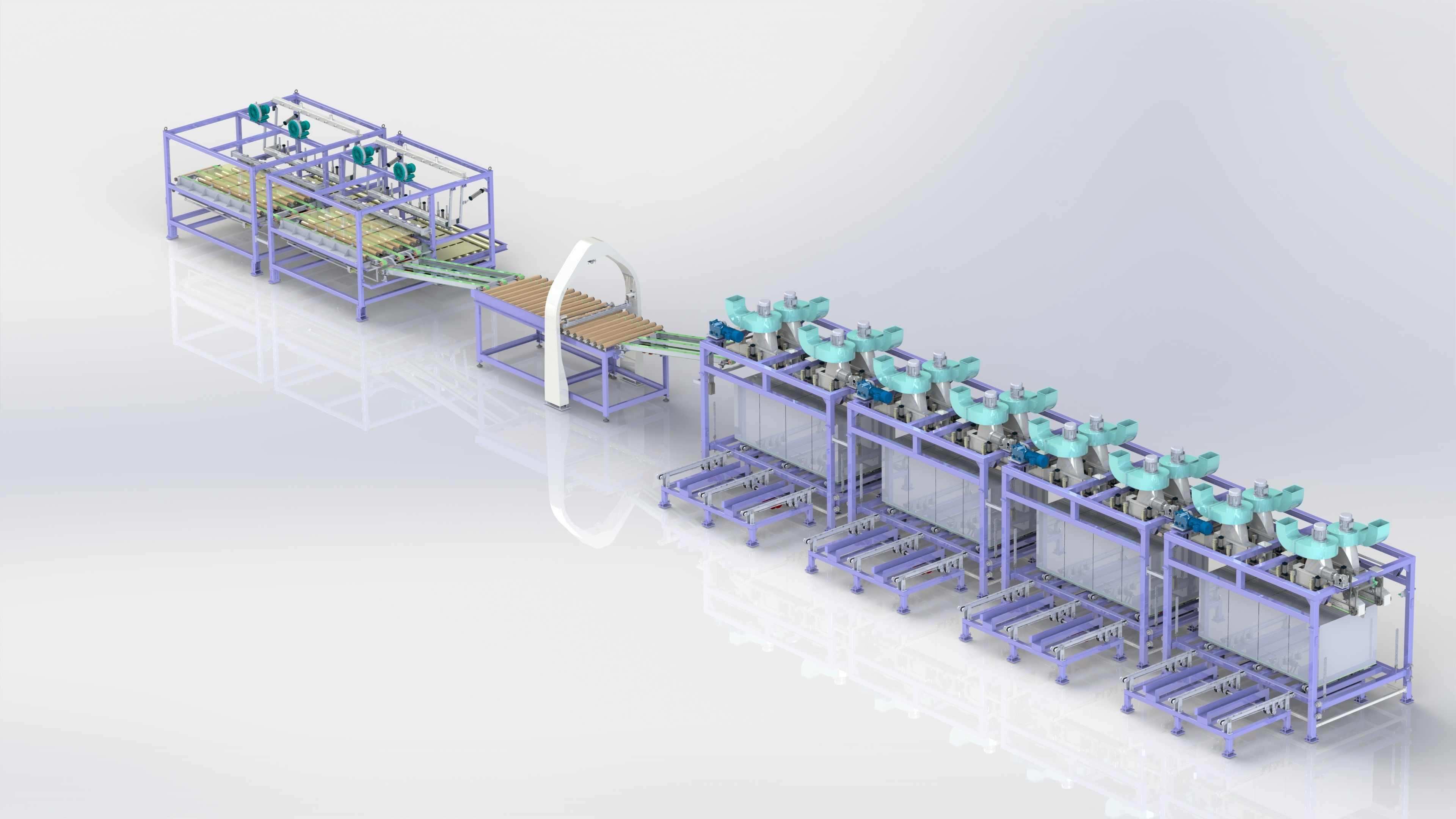

After veneer exits the dryer, it moves along a conveyor belt into a dedicated inspection zone. Here, high-resolution industrial cameras (equipped with LED lighting to eliminate shadows) capture images from multiple angles, documenting surface features like color, texture, and defects (cracks, knots, insect holes). But the innovation doesn’t stop at visible light: advanced systems integrate near-infrared (NIR) spectroscopy to measure moisture distribution (critical for preventing warping) and laser scanners to detect internal defects such as voids or decay. A 4K camera, for instance, resolves details as small as 0.1mm, ensuring even tiny imperfections are never overlooked.

2. AI-Powered Analysis: From Pixels to Intelligent Classification

The captured images are transmitted to an industrial computer running deep learning models (e.g., Convolutional Neural Networks, CNNs). Trained on thousands of veneer images, these algorithms extract and classify key features:

• Defect Quantification: Measuring defect area (e.g., A-grade veneer allows ≤1% coverage), position, and density (e.g., ≤3 knots per square meter).

• Geometric Measurement: Calibrated cameras check length, width, and thickness (tolerance ±0.1mm) and calculate warpage using 3D point cloud data.

• Color/Texture Grading: HSV color space analysis detects subtle shade variations, while Gabor filters assess texture uniformity to flag mold or stains.

The system compares results against preset standards (e.g., FSC certification rules or client-specific grades) to determine eligibility.

3. Decision-Making & Feedback: From Sorting to Process Optimization

Once analyzed, the system assigns a grade (A/B/C or pass/fail) and triggers sorting mechanisms—pneumatic pushers, robotic arms, or diverter gates—to route veneer to designated bins. Simultaneously, data is fed back to the dryer’s PLC (Programmable Logic Controller) to adjust parameters (temperature, airflow) in real time. For example, if moisture levels are uneven, the dryer extends drying time in specific zones, preventing future defects. This closed loop turns grading from a passive check into an active quality improvement tool.

Multidimensional Detection: Leaving No Flaw Undetected

What sets Smart Veneer Grading Vision Systems apart is their ability to inspect veneer across three critical dimensions, ensuring comprehensive quality assurance.

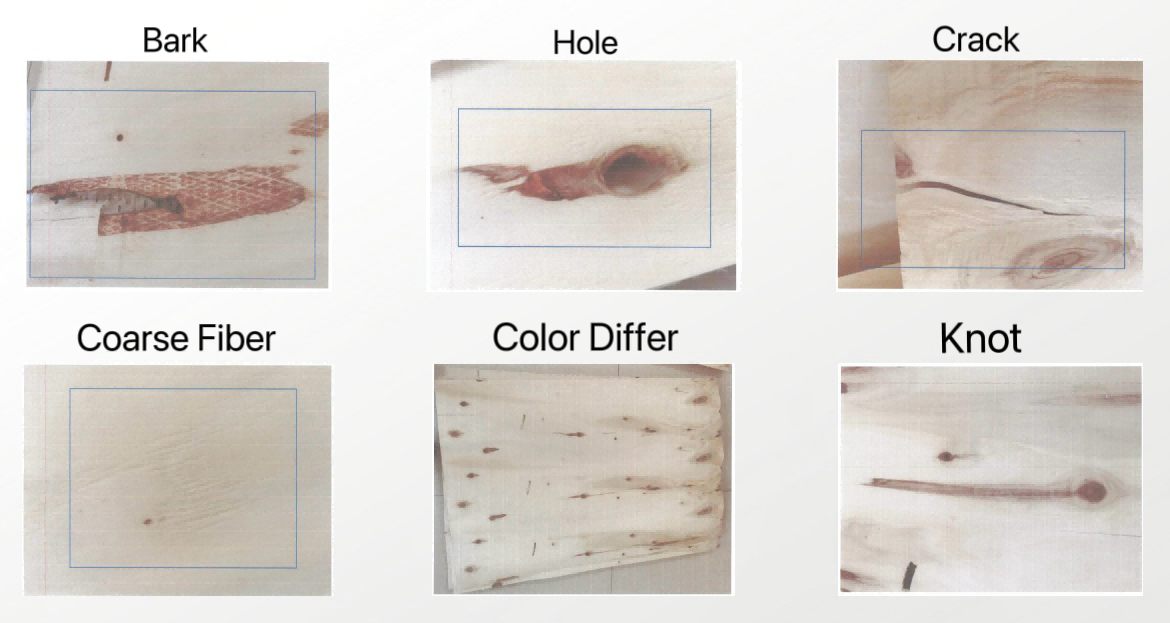

1. Surface Defect Detection

• Cracks: Edge detection algorithms (e.g., Canny) map crack length and depth, classifying them as “superficial” (repairable) or “critical” (reject).

• Knots: Texture analysis distinguishes live knots (blended with surrounding wood) from dead knots (dark, brittle, and weak for glue bonds).

• Insect Damage: Morphological operations identify hole clusters, sorting veneer for uses where aesthetics matter less (e.g., structural plywood).

2. Geometric & Dimensional Checks

Cameras enforce strict tolerances: thickness (0.3–3mm for most applications), straightness (warping ≤2mm per meter), and edge squareness. This ensures compatibility with downstream machinery like laminators or CNC routers.

3. Color & Texture Grading

For decorative veneer (oak, walnut), spectral imaging matches color tones across batches. A furniture maker requiring “golden oak” hues can trust the system to reject off-shade sheets, maintaining brand consistency.

Core Benefits: Elevating Production from Good to Exceptional

Adopting Smart Veneer Grading Vision Systems delivers transformative advantages, solving long-standing industry pain points:

1. Unmatched Accuracy & Consistency

Manual inspection averages 70–80% accuracy, with fatigue causing missed defects. Vision systems boast 95%+ accuracy, as seen in Shine Machinery’s clients: one plywood plant raised A-grade veneer yield from 75% to 92%. This consistency builds buyer trust and reduces returns.

2. Cost Reduction & Labor Efficiency

A single system replaces 3–5 inspectors, cutting annual labor costs by ¥200,000–300,000 (Chinese factory data). Early defect detection minimizes waste, saving raw materials and energy.

3. Data-Driven Process Optimization

Every veneer’s grade, defect type, and location is logged, generating reports that reveal trends (e.g., “knots increase in winter”). This data trains better AI models and guides dryer adjustments—like lowering temperatures for sensitive species like eucalyptus.

4. Flexible Production for Custom Demands

Modular software lets systems adapt to new grading standards (A/B/C to premium/reject) or veneer types (thickness, species like eucalyptus or poplar). A European factory handles 10+ veneer varieties without retooling, supporting small-batch custom orders.

Real-World Impact: Case Studies

• Thai Eucalyptus Veneer Plant: After installation, sorting speed hit 120 sheets/minute (3x faster than manual labor). NIR sensors cut moisture-related defects by 40%, and feedback loops reduced energy use by 15%.

• European FSC-Certified Factory: The system auto-tags defects for FSC audits (e.g., “sustainably sourced wood”), slashing audit prep time by 50%. It also tracks defect origins to improve forest management.

Conclusion: From Passive Inspection to Active Quality Leadership

Smart Veneer Grading Vision Systems redefine veneer grading by replacing subjective human judgment with objective, data-driven intelligence. By integrating with dryers, they create a closed loop that not only sorts veneer but also optimizes drying in real time—boosting yields, cutting costs, and ensuring consistency. For wood processors aiming for Industry 4.0 competitiveness, these systems are more than tools: they are partners in building agile, sustainable, and profitable operations. With precision, efficiency, and adaptability at their core, Smart Veneer Grading Vision Systems are shaping the future of wood processing—one flawlessly graded sheet at a time.
