20M 1 Layer Steam Type Veneer Roller Dryer Machine Introduction

Category：

Veneer Dryer
Brand：

SHINE
Browse number：

2611
Release time：

2021-03-16 08:39:12
E-mail:info@sdshinemachinery.com

Detailed Description
Attributes

20M 1 Layer Steam Type Veneer Roller Dryer Machine Introduction

Shine 20m 1deck wood veneer dryer are composed of 16m heating section and 4m cooling section. The fresh veneer is fed into the veneer dryer and moved through the veneer dryers machine by running rollers and at the same time the hot air blows the surface and back of the veneer to achieve the drying effect. High temperature roller drum directly contact with wet veneer for heat transfer, the drying capacity of 20m veneer drying machine can achieve about 15 m³ for 24 hours per day. So the heat efficiency of core veneer dryer is high, heat loss is reduced. The veneer after drying has uniform moisture content, flat without buckle or end waviness and the surface is in good condition for gluing.

20M 1 Layer Steam Type Veneer Roller Dryer Machine Pictures

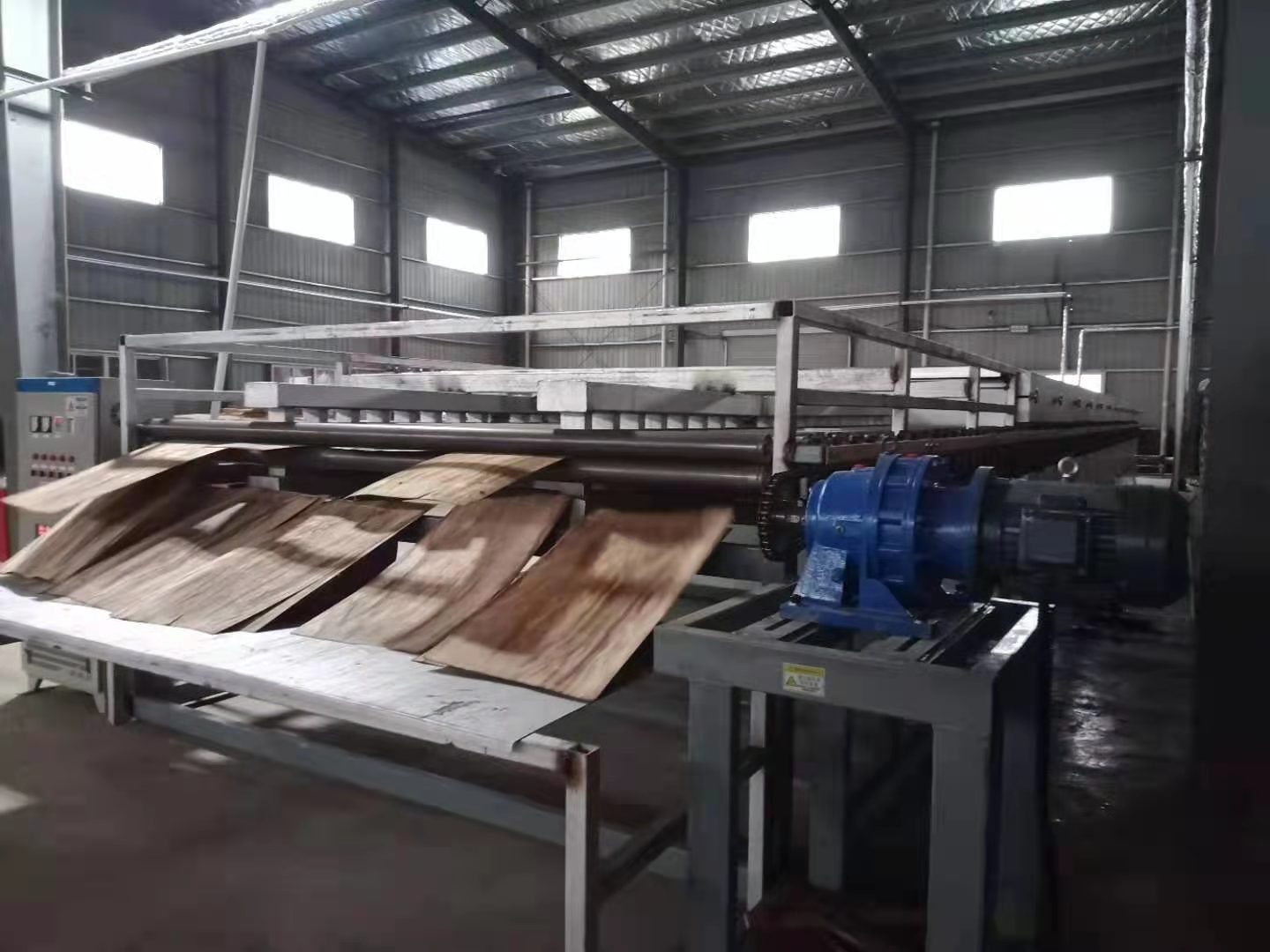

Veneer Dryer

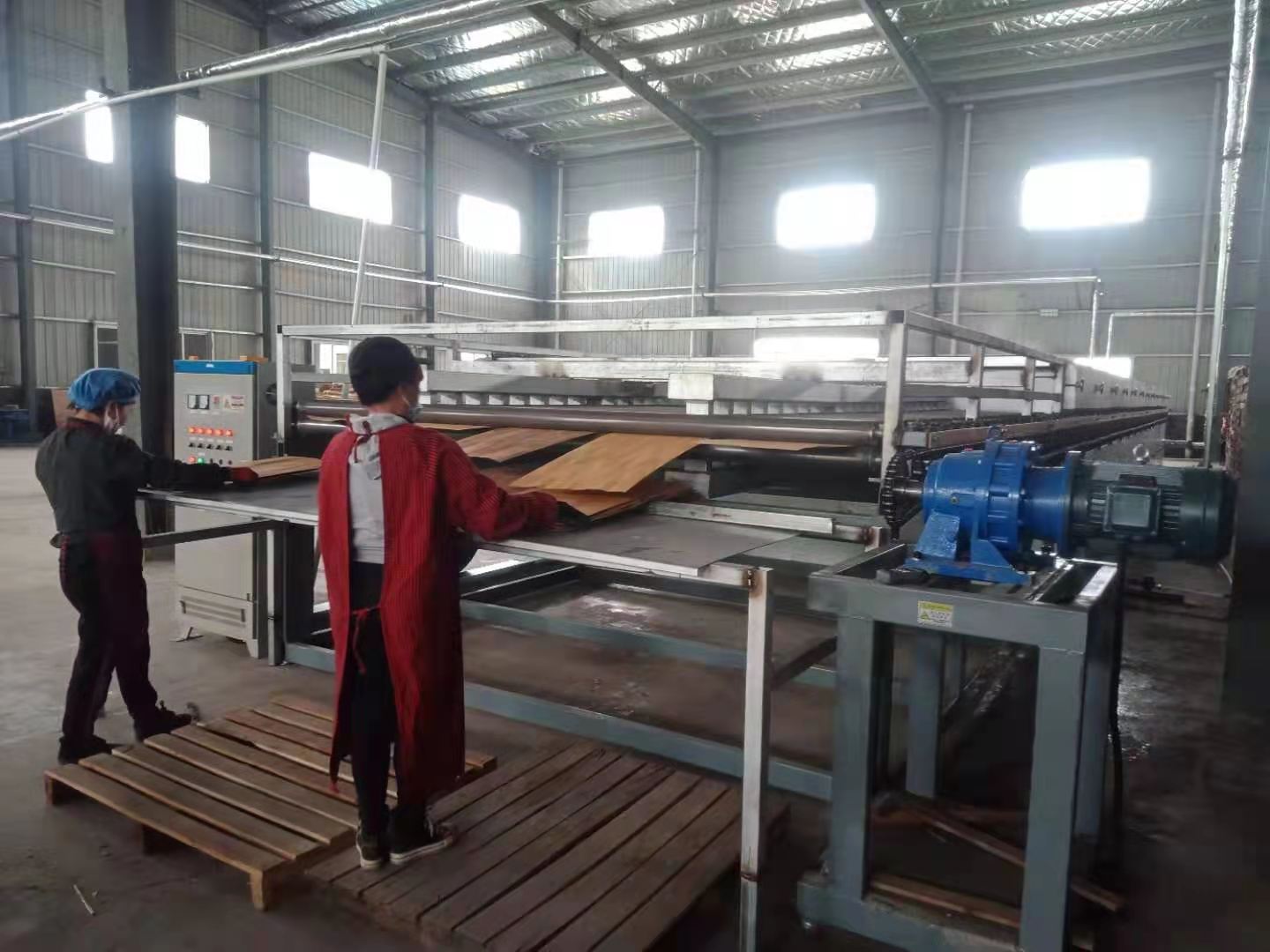

Veneer Drying Machine

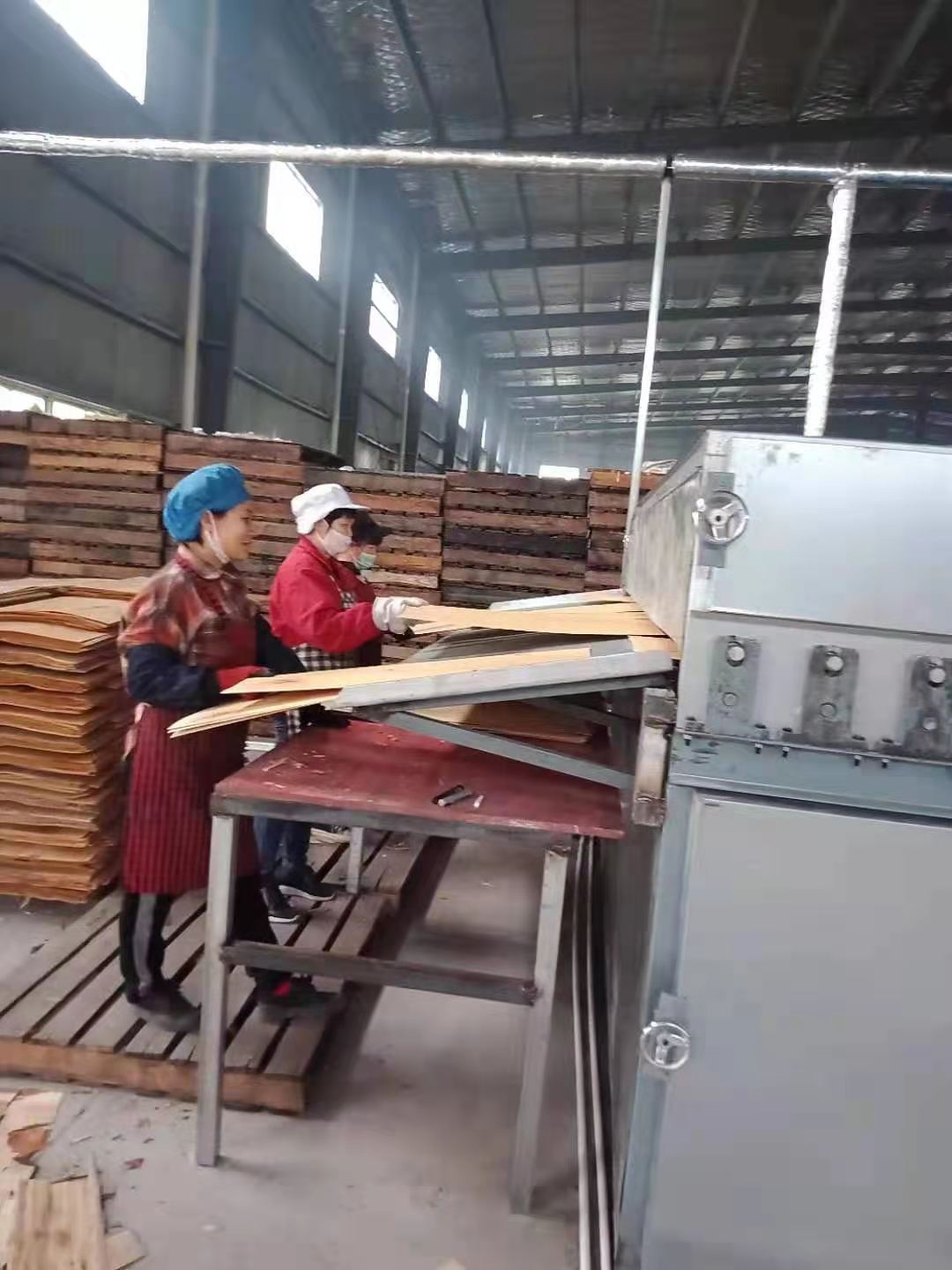

Biomass Veneer Dryer

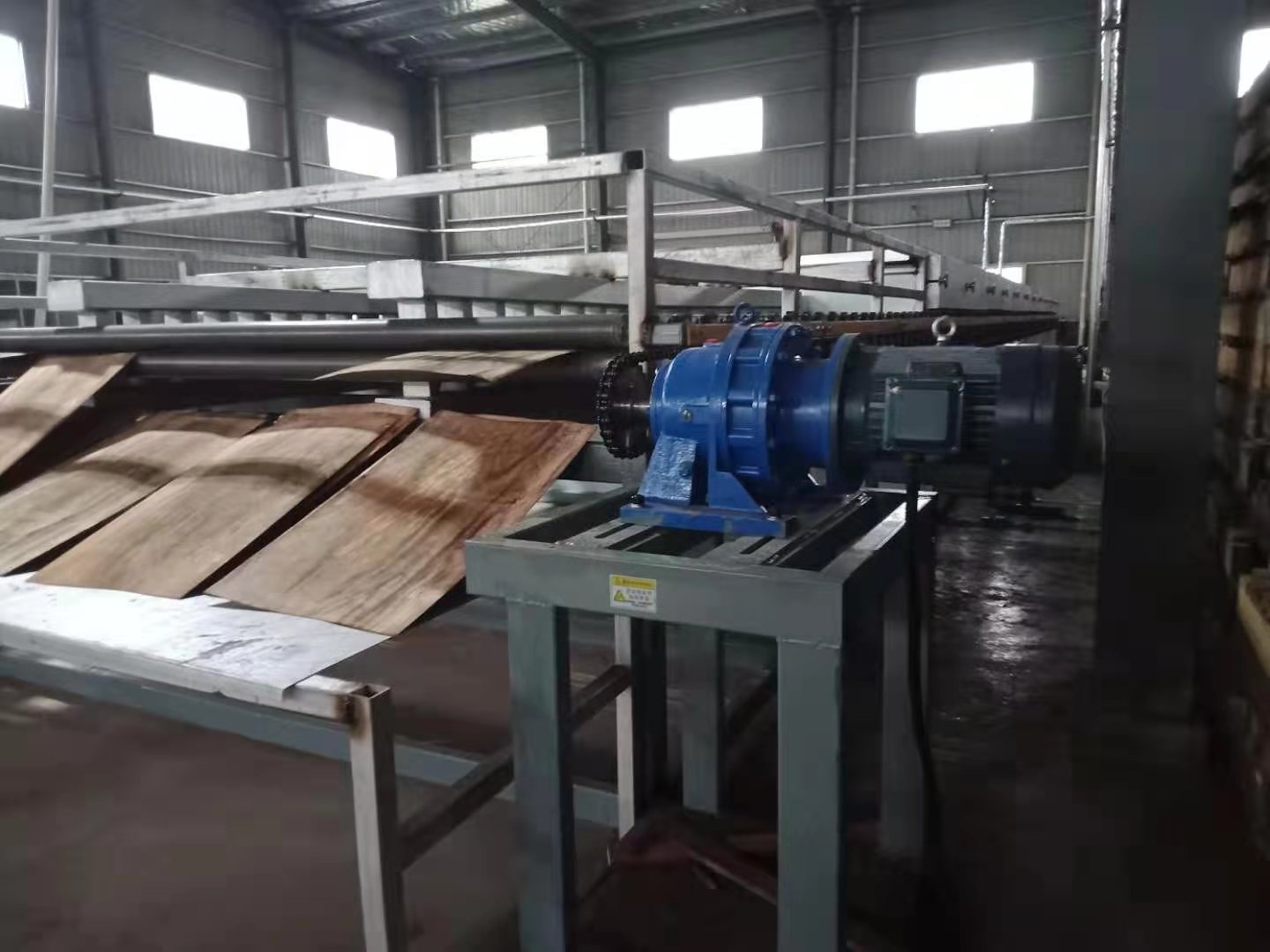

Wood Veneer Dryer

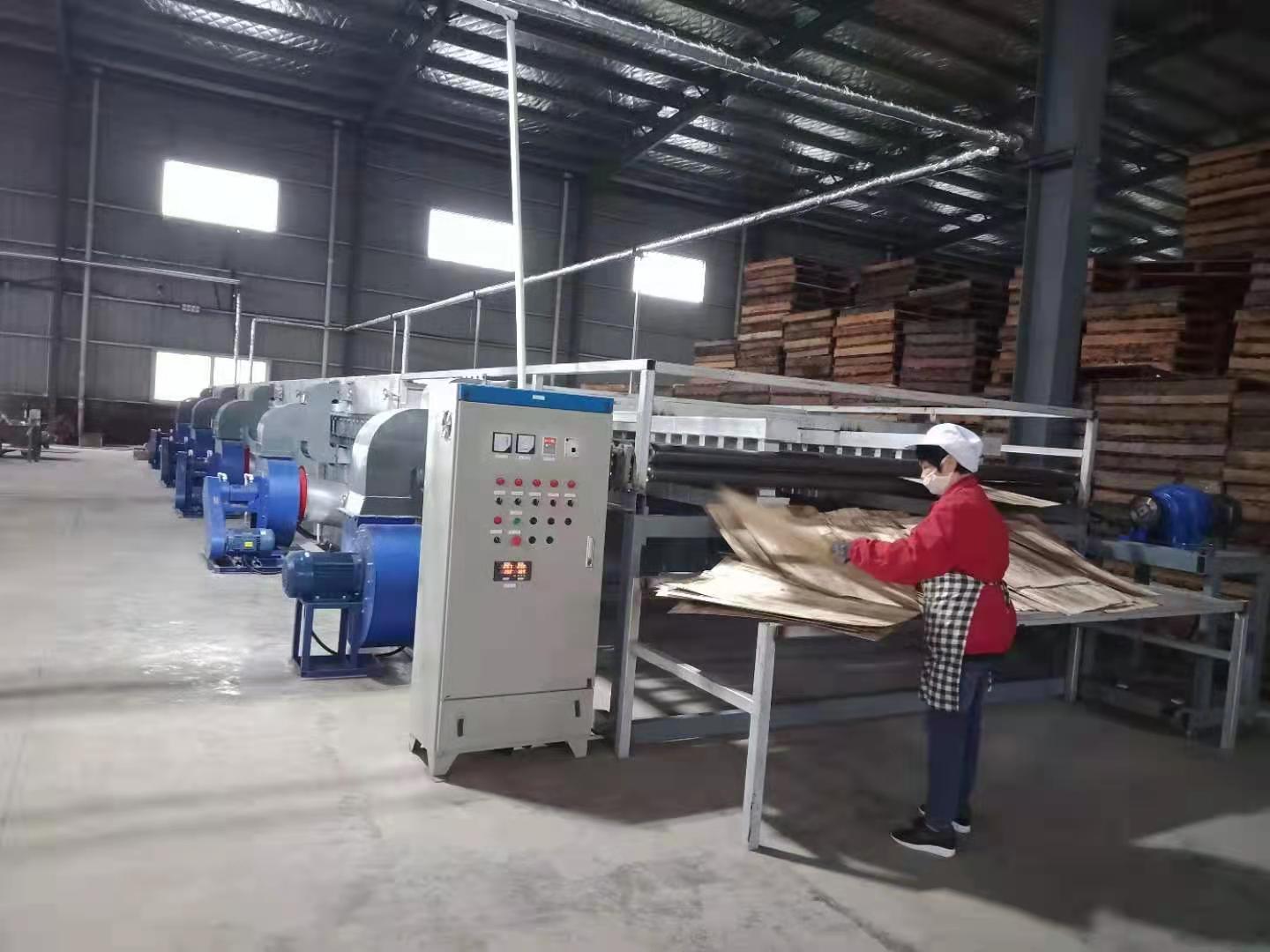

1Layer Veneer Dryer

Technical Parameter for 20M 1 Layer Steam Type Veneer Roller Dryer Machine

Parameter Model	DHS20M	DHS24M	DHS28M	DHS32M	DHS36M	DHS40M
Work width（m）	3	3	3	3	3	3
Deck	1	1	1	1	1	1
Veneer thickness（mm）	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5	0.5-5
Heating area （m）	16	20	24	28	32	36
Cooling area (m)	4	4	4	4	4	4
Initial water content(%)	50-80	50-80	50-80	50-80	50-80	50-80
Finished water content(%)	10	10	10	10	10	10
Drying capacity (m³/h)	0.5-0.65	0.65-0.8	0.8-1	1-1.2	1.15-1.35	1.3-1.5
Heat exhaustion（10000 kcal）	17.5-23	23-28.5	28-35	35-42	40.25-47.25	45.5-52.5
Total power (kw)	45	50	58	65	73	80
Overall size LxWxH（m）	25*4.5	29*4.5	33*4.5	37*4.5	41*4.5	45*4.5
