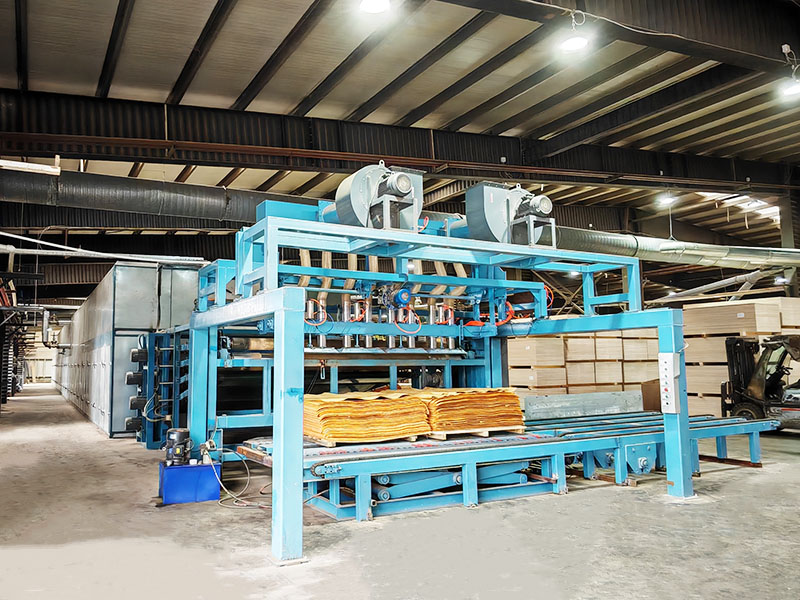

Roller veneer drying machine has an advanced heat exchanging structure with features of high heat exchange efficiency and low heat loss. The core veneer dryer can be heated by a steam boiler, thermal oil heater, or biomass burner which can save the fuel cost the most. Shine veneer dryer adopts automatic electric control and frequency conversion system, which can adjust the transmission speed and temperature automatically according to different veneer thickness and moisture content to achieve and ideal drying effect. Equipped with automatic veneer feeder and automatic collection system, which not only improves the drying efficiency but also saves labor cost mostly.
Advantages of Veneer Dryer Machine
1. The well-developed heat exchange system fully improves the energy utilization rate and saves unnecessary energy waste.
2. The control cabinet has automatic temperature control and speed regulation system, which can accurately control the final moisture content. Simple operation and low failure rate.
3. The temperature in the burner is 40-60 ℃ higher than that of the traditional dryer (steam, thermal oil), and the temperature is controlled at 140-180 ℃, which shortens the drying time and increases the output.
4. After drying, the veneer is smooth, with no cracks, wrinkles, or end ripples.
5. Shrinkage and hardening are kept to a minimum and veneer collapse and honeycomb structure are avoided.
6. We have a professional R&D team which can design different models according to customer’s special requirement.
7. The perfect after-sale service team can supply 24 hours online service.
Product Parameters of Veneer Dryer Machine
Wood species | Veneer Drying capacity (m³/h) | Veneer water moisture | Veneer thickness and size | |||
1 deck veneer dryer | 2 deck veneer dryer | 4 deck veneer dryer | 6 deck veneer dryer | |||
Eucalyptus | 0.5-2 | 1-3.3 | 2-9.0 | 15-17 | Fresh Veneers (above 70%) to about 0-10% | 0.8-8mm |
Birch | 0.6-2.2 | 1.2-3.8 | 2.3-10 | 15-18 | Fresh Veneers (above 70%) to about 0-10% | 0.8-8mm |
Rubberwood | 0.6-2.2 | 1.2-3.8 | 2.3-10 | 15-18 | Fresh Veneers (above 60%) to about 0% | 0.8-8mm |
Poplar | 0.6-2.2 | 1.2-3.8 | 2.3-10 | 15-18 | Fresh Veneers (above 50%) to about 0-10% | 0.8-8mm |
Beech | 0.6-2.2 | 1.2-3.8 | 2.3-10 | 15-18 | Fresh Veneers (above 70%) to about 0-10% | 0.8-8mm |
Pine | 0.6-2.2 | 1.2-3.8 | 2.3-10 | 15-18 | Fresh Veneers (above 70%) to about 0-10% | 0.8-8mm |
Other | 0.6-2.2 | 1.2-3.8 | 2.3-10 | 15-18 | Fresh Veneers (above 70%) to about 0-10% | 0.8-8mm |
shine veneer dryer can dry various types of wood. If you want to know more detailed information, please feel free to contact us! |

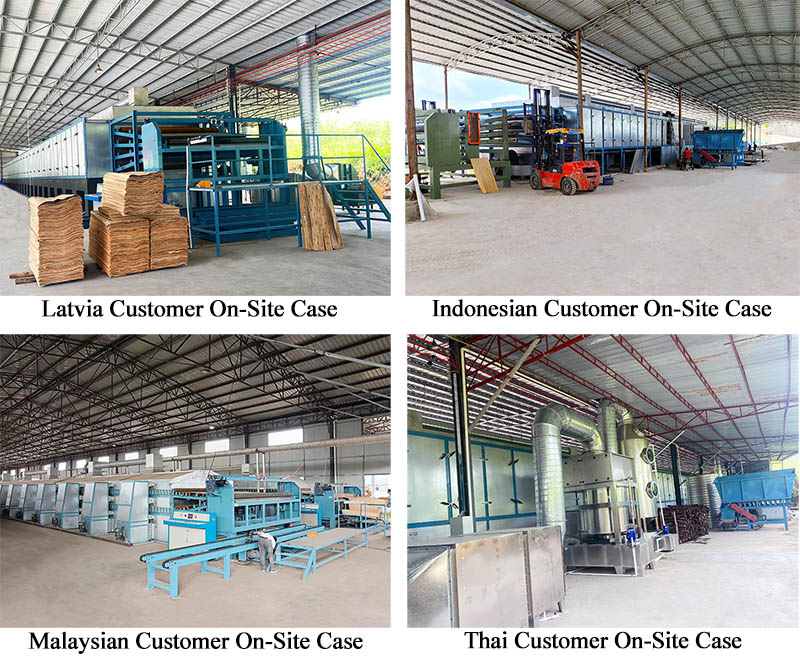

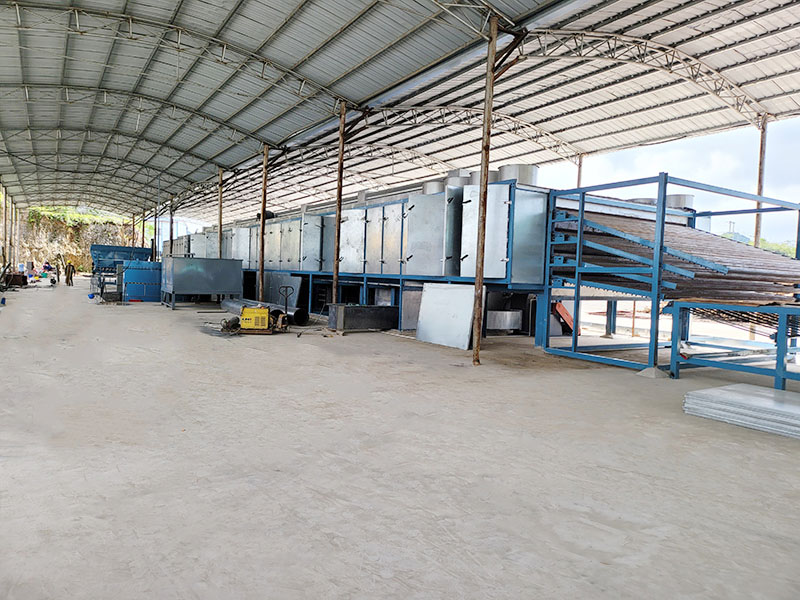

Customer Case

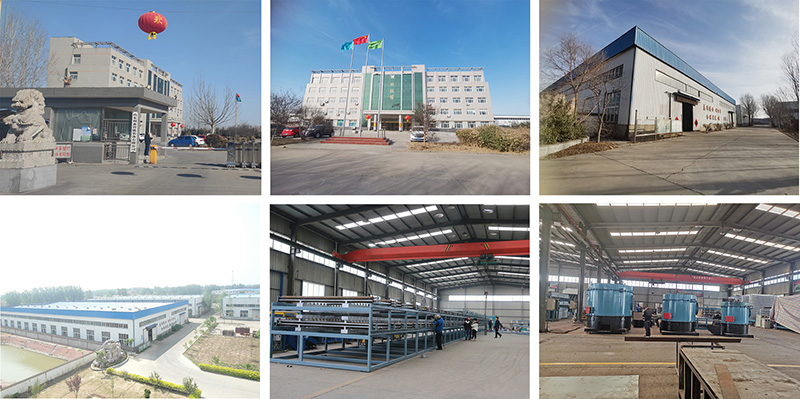

The Factory

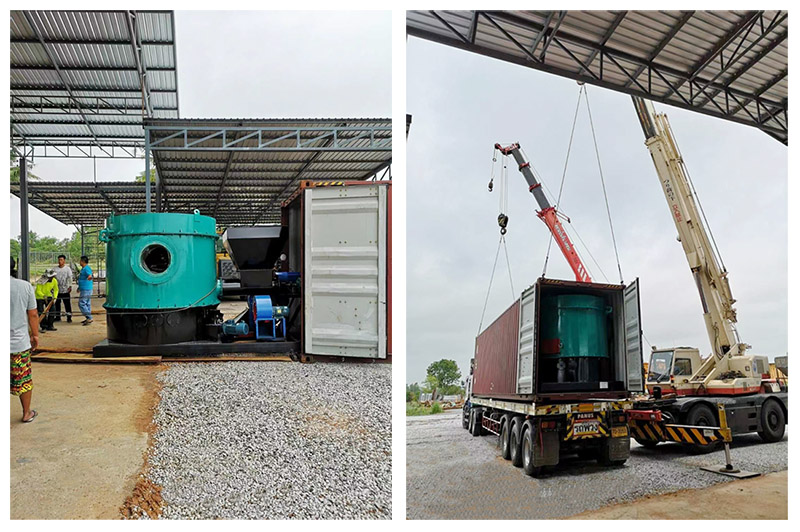

Packaging & Shipping
