Gypsum Mortar Production Line

Gypsum Mortar Production Line: Engineered for Industrial-Grade Performance

In the rapidly evolving construction materials industry, gypsum-based dry-mix mortar has emerged as a versatile and eco-friendly solution for modern building applications. From interior wall plastering to self-leveling floor screeds, the demand for high-performance gypsum mortar is surging. To meet this demand, specialized gypsum mortar machinery has been developed as a comprehensive, automated production system. This equipment is not merely a collection of machines; it is a meticulously engineered production line designed to transform raw gypsum and additives into stable, high-quality dry-mix mortars on an industrial scale. By integrating functions such as raw material storage, precise dosing, efficient mixing, environmental dust control, and automated packaging, this production line serves as the technological backbone for manufacturers aiming to achieve consistency, efficiency, and compliance in their operations.

Core Equipment Components and Their Functions

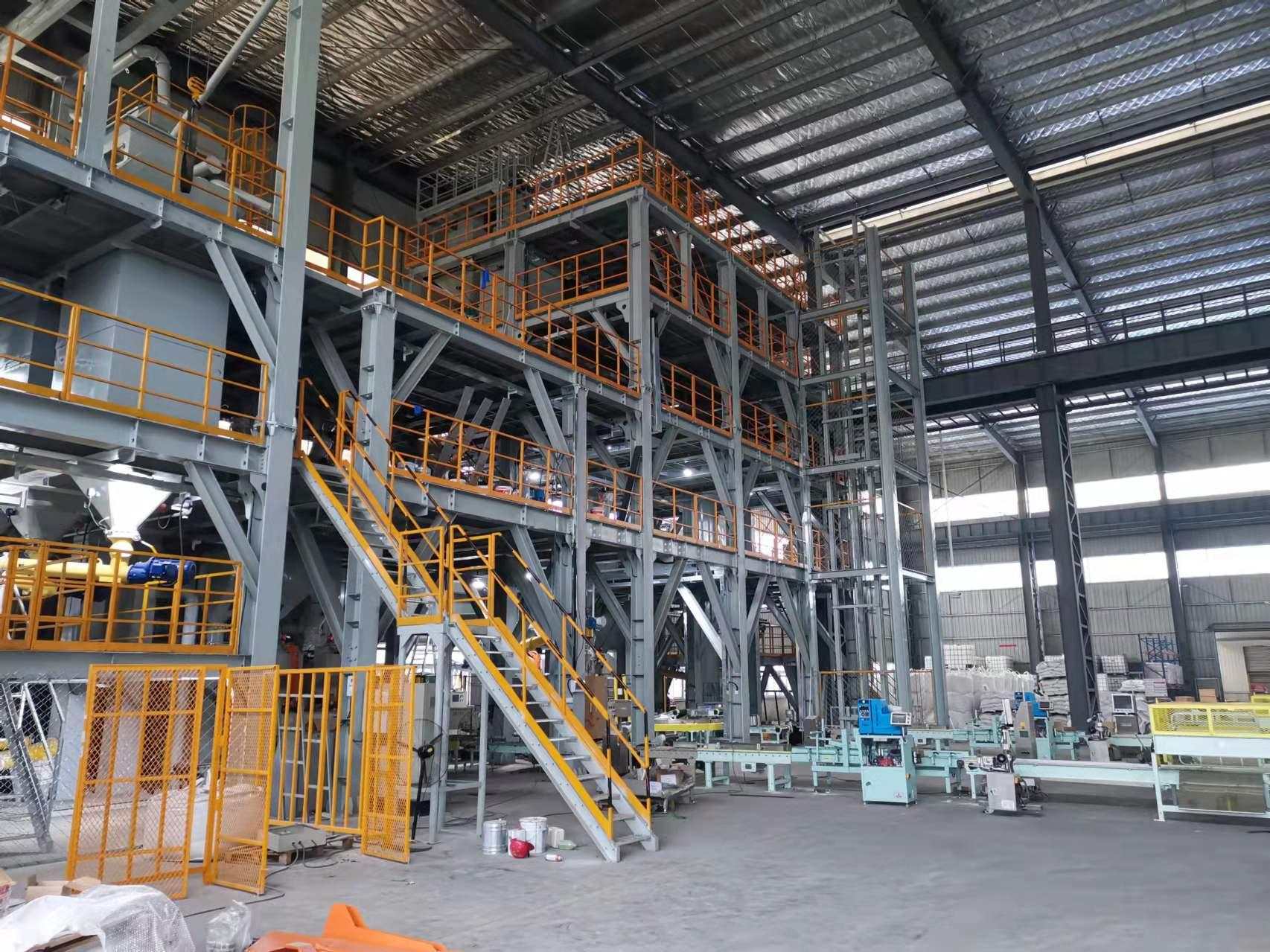

A complete gypsum mortar production line is composed of several interconnected systems, each playing a critical role in ensuring the final product meets stringent performance standards.

1. Raw Material Storage System

The foundation of any reliable production line is its ability to store and manage diverse raw materials. This system typically includes multiple silos constructed from durable steel. Each silo is dedicated to a specific component: natural gypsum powder, sand (often processed to specific gradations), supplementary cementitious materials like lime or fly ash, and chemical additives such as retarders, plasticizers, and cellulose ethers. The silos are equipped with automated arch-breaking devices and level sensors to prevent material bridging and ensure a continuous feed. Proper segregation of materials is vital to prevent contamination and maintain the integrity of the formulation.

2. Precise Batching and Metering System

Consistency in product quality begins with accuracy in ingredient proportioning. The batching system employs high-precision electronic weighing scales, including loss-in-weight feeders for powders and screw conveyors with load cells for aggregates. Controlled by a sophisticated Programmable Logic Controller (PLC), this system doses each component according to a pre-programmed recipe with tolerances as low as ±0.1%. This level of precision is non-negotiable for achieving the desired fluidity, bonding strength, crack resistance, and rapid-setting properties of the final gypsum mortar. Even minor deviations in the ratio of binder to aggregate can lead to catastrophic failures in application, such as poor adhesion or excessive shrinkage.

3. High-Efficiency Mixing System

Once accurately measured, the raw materials are transferred to the core of the operation: the mixing system. The most common type used in gypsum mortar production is the twin-shaft compulsory mixer or a high-shear ploughshare mixer. These mixers are specifically designed to handle the unique rheology of gypsum-based materials. They generate intense shear forces within a short mixing cycle (typically 60-180 seconds), ensuring that all particles are uniformly coated with the binding matrix and that chemical additives are perfectly dispersed. This process is crucial for developing the mortar’s workability and ensuring its performance characteristics are homogeneous throughout the entire batch.

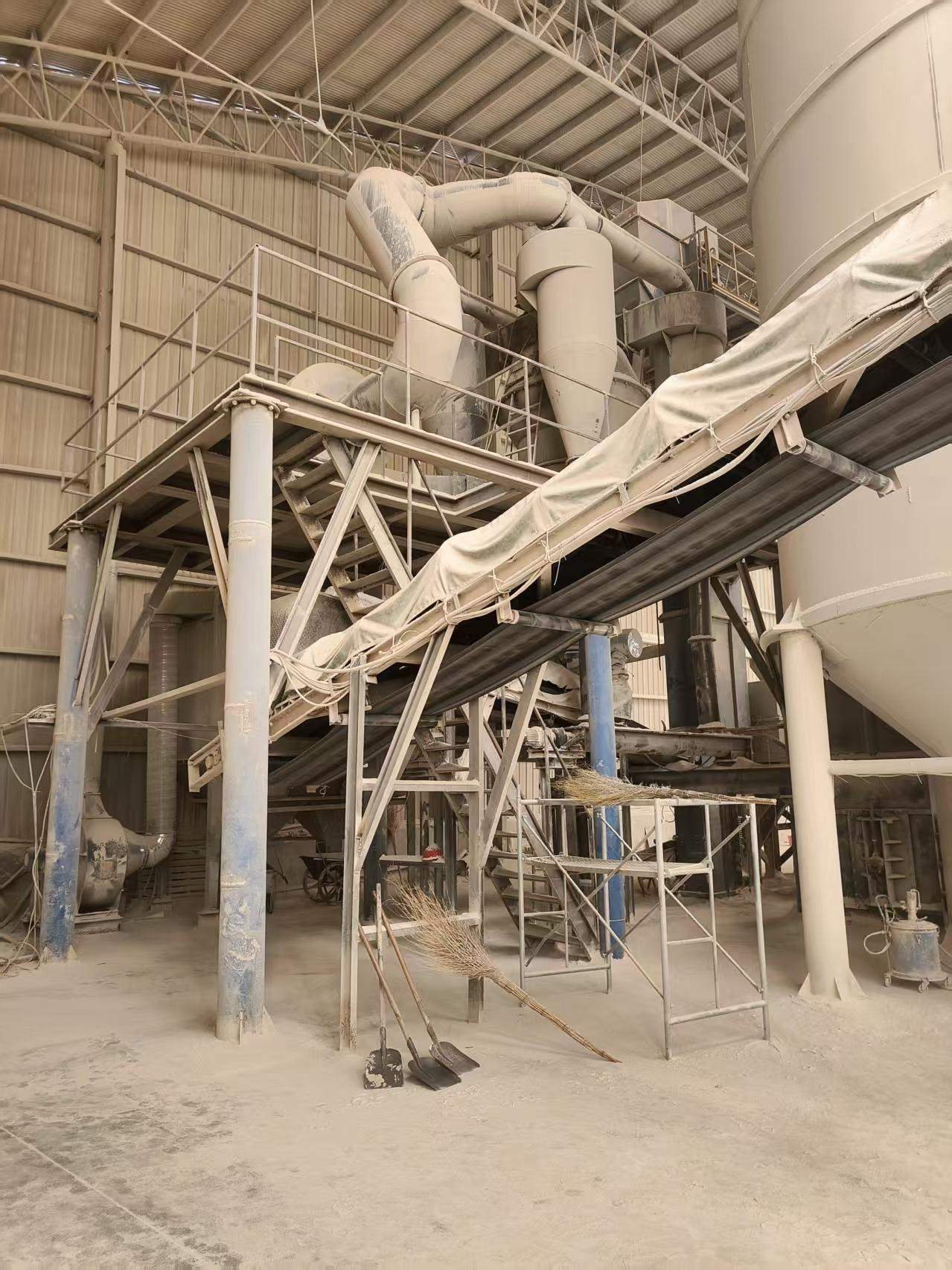

4. Environmental Dust Control System

Modern industrial production demands environmental responsibility. Gypsum powder is notoriously fine and dusty, posing health risks and creating housekeeping challenges. The production line incorporates a multi-stage dust collection system. Primary filters are installed at all material transfer points—such as pneumatic conveying lines, rotary valves, and mixer discharges—to capture airborne particulates at the source. These are connected to a central pulse-jet bag filter, which cleans the air and returns it to the workspace or exhausts it cleanly outdoors. This system ensures a safe working environment, complies with international environmental regulations, and minimizes raw material loss.

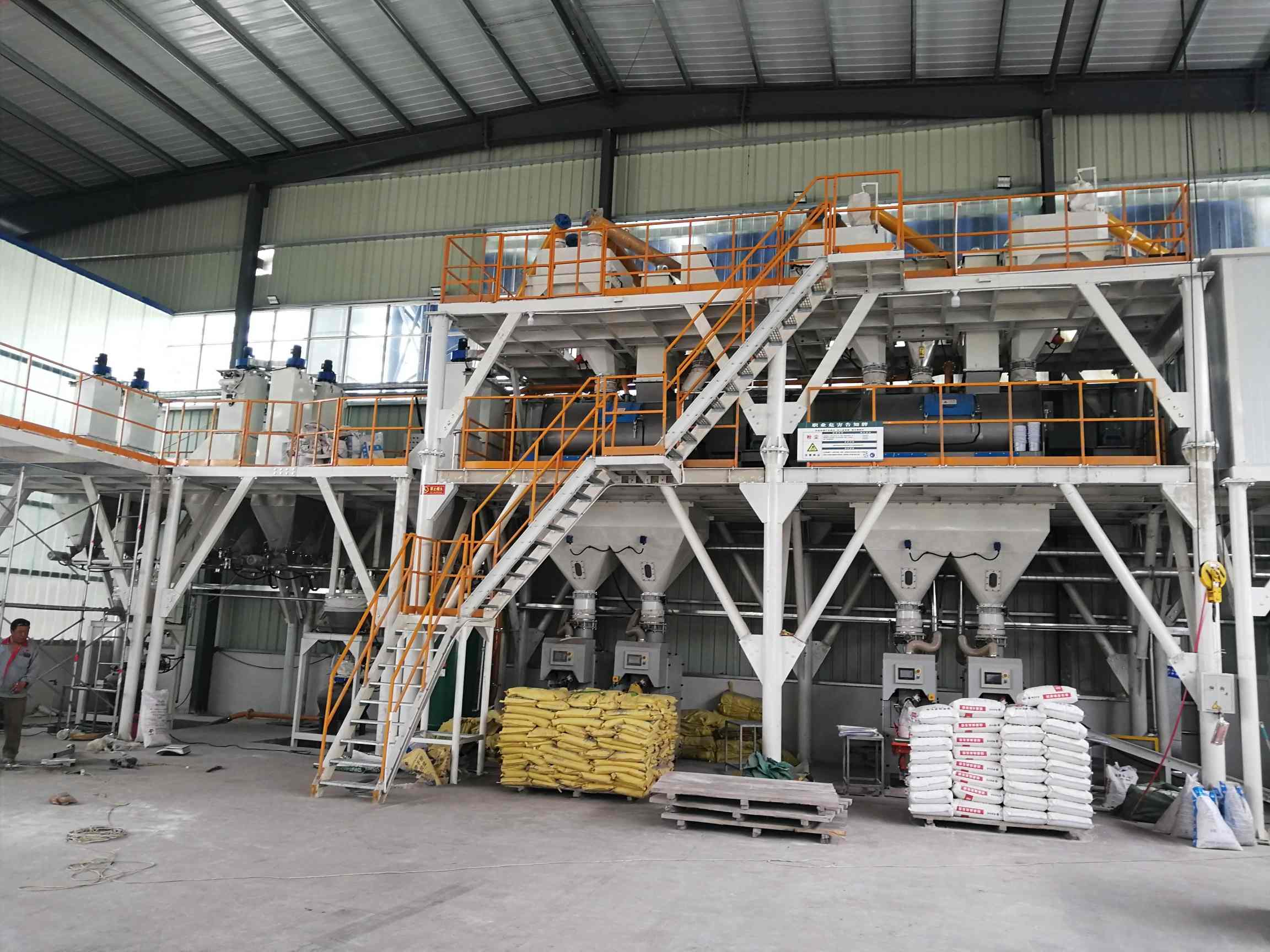

5. Automated Packaging System

The final stage of the production line transforms the mixed mortar from bulk material into a market-ready product. The packaging system typically consists of a valve bag filling machine or an open-mouth bagging unit. These machines are integrated with the PLC to automatically weigh, fill, and seal bags of a predetermined weight (e.g., 25kg or 40kg). Advanced systems can also apply anti-caking agents during the filling process and include palletizing robots to stack finished bags onto pallets for warehousing and distribution. Automation at this stage drastically reduces labor requirements and ensures consistent package presentation.

Applications and Product Performance

The output of this sophisticated production line is a range of specialized gypsum mortars. Gypsum plastering mortar is formulated for smooth, crack-free finishes on interior walls and ceilings. Gypsum self-leveling floor mortar is engineered for excellent flowability and rapid hardening, making it ideal for preparing concrete substrates for flooring installations. Gypsum thermal insulation mortar incorporates lightweight aggregates to reduce building heat loss. All these products benefit from the production line’s ability to optimize the formula, ensuring the final material possesses the necessary fluidity for easy application, strong bonding for durability, crack resistance for longevity, and fast-drying properties to accelerate project timelines.

In conclusion, a professional gypsum mortar production line is a capital investment that pays dividends in product quality, operational efficiency, and market competitiveness. By automating the entire process from storage to packaging, it eliminates human error, maximizes throughput, and guarantees that every bag of mortar leaving the factory is a promise of reliability for builders and contractors worldwide.
