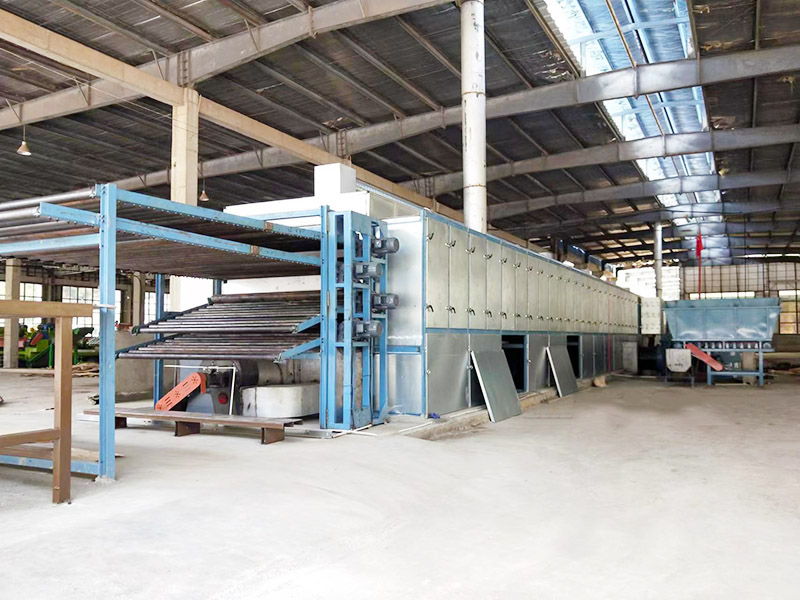

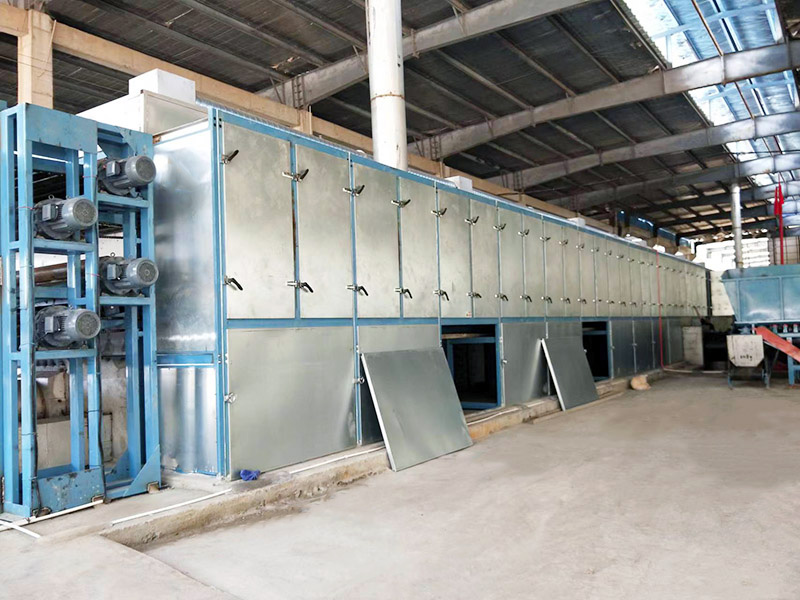

veneer roller dryer is a new generation wood veneer drying machine. By adopting latest international pressure contact veneer drying technology, Shine roller veneer dryer has the advantage of high veneer drying capacity, lowest operate cost, energy efficiency and high quality dried veneer. The veneer after drying has the uniform moisture content, flat, no waviness and shrinkage is kept to a minimum. The surface is in good condition for gluing for plywood process.
Advantages of Veneer Dryer Machine
1. The well-developed heat exchange system fully improves the energy utilization rate and saves unnecessary energy waste.
2. The control cabinet has automatic temperature control and speed regulation system, which can accurately control the final moisture content. Simple operation and low failure rate.
3. The temperature in the burner is 40-60 ℃ higher than that of the traditional dryer (steam, thermal oil), and the temperature is controlled at 140-180 ℃, which shortens the drying time and increases the output.
4. After drying, the veneer is smooth, with no cracks, wrinkles, or end ripples.
5. Shrinkage and hardening are kept to a minimum and veneer collapse and honeycomb structure are avoided.
6. We have a professional R&D team which can design different models according to customer’s special requirement.
7. The perfect after-sale service team can supply 24 hours online service.
Product Parameters of Veneer Dryers
Wood species | Veneer Drying capacity (m³/h) | Veneer water moisture | Veneer thickness and size | |||
1 deck veneer dryer | 2 deck veneer dryer | 4 deck veneer dryer | 6 deck veneer dryer | |||
Eucalyptus | 0.5-2 | 1-3.3 | 2-9.0 | 15-17 | Fresh Veneers (above 70%) to about 0-10% | 0.8-8mm |
Birch | 0.6-2.2 | 1.2-3.8 | 2.3-10 | 15-18 | Fresh Veneers (above 70%) to about 0-10% | 0.8-8mm |
Rubberwood | 0.6-2.2 | 1.2-3.8 | 2.3-10 | 15-18 | Fresh Veneers (above 60%) to about 0% | 0.8-8mm |
Poplar | 0.6-2.2 | 1.2-3.8 | 2.3-10 | 15-18 | Fresh Veneers (above 50%) to about 0-10% | 0.8-8mm |
Beech | 0.6-2.2 | 1.2-3.8 | 2.3-10 | 15-18 | Fresh Veneers (above 70%) to about 0-10% | 0.8-8mm |
Pine | 0.6-2.2 | 1.2-3.8 | 2.3-10 | 15-18 | Fresh Veneers (above 70%) to about 0-10% | 0.8-8mm |
Other | 0.6-2.2 | 1.2-3.8 | 2.3-10 | 15-18 | Fresh Veneers (above 70%) to about 0-10% | 0.8-8mm |
shine veneer dryer can dry various types of wood. If you want to know more detailed information, please feel free to contact us! |
Exhibition and Customer Visiting

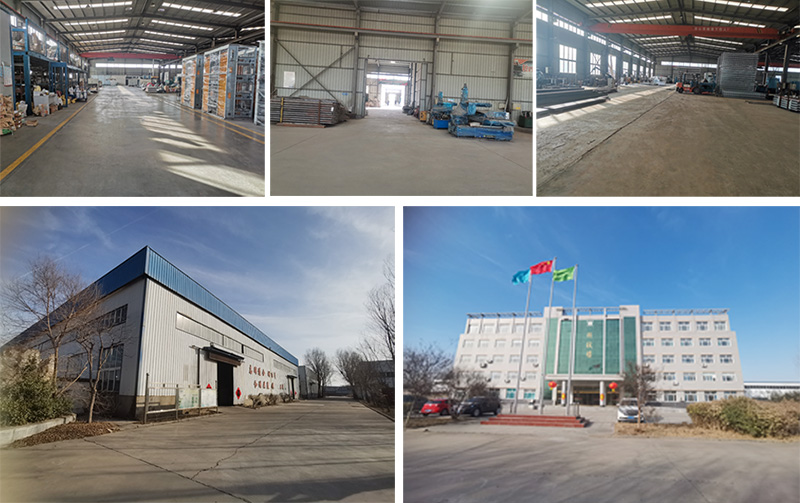

The Factory
Packaging & Shipping
