rotary cut veneer dryer

Category：

Veneer Dryer
Brand：

SHINE
Browse number：

1470
Release time：

2024-05-20 14:26:08
E-mail:info@sdshinemachinery.com

Detailed Description

Roller Veneer dryer is one of the main equipment in plate production. The quality of veneer drying directly affects the quality of veneer and glued products. The design of hot air continuous roller press is based on the most advanced continuous pressure contact veneer drying technology in the world. The working principle is that the veneer is clamped by the upper and lower seamless steel tube rollers, and the oven temperature reaches 140 ℃ by preheating, and then enters between the upper and lower rollers and blows high pressure hot air to the upper and lower sides of the veneer through the hot air pipe for rapid drying. So it can make the veneer smooth and moisture content even after drying, and it also has the characteristics of direct contact heat transfer between high temperature roller and wet veneer, high thermal efficiency, low heat loss and reducing heat energy consumption.

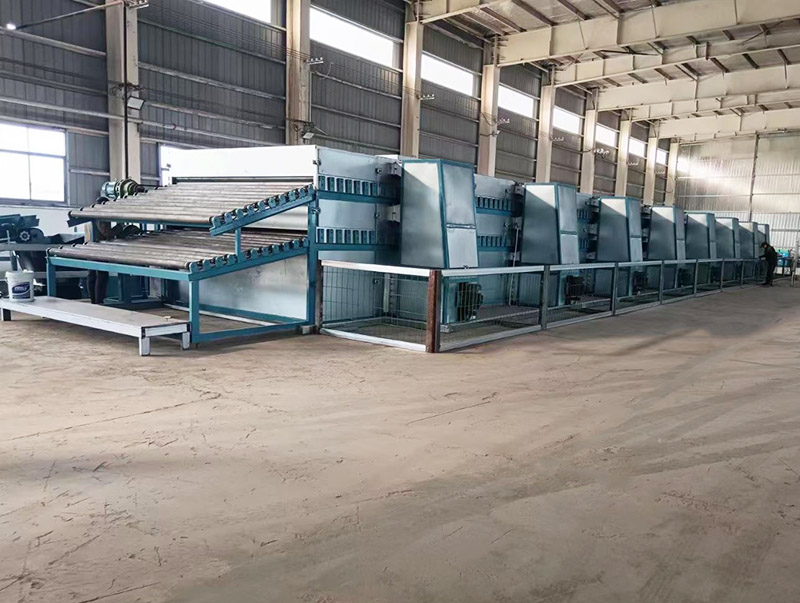

veneer dryer

Roller Veneer dryer

Product Parameters of rotary cut veneer dryer

Model No	GTH30-48
Working Width	3m
Deck	2
Roller material	Q235B, φ89 steel pipe
Heating area length	44m
Cooling area length	4m
Veneer thickness	0.8-8mm
Veneer water moisture	Fresh veneer to about 10%
Heating material & drying temperature	Waste wood, 140-200°C adjustable. Temperature control accuracy ±5°C. There is automatic temperature control and speed regulation system, which can guarantee the moisture content is consistent.
Drying capacity (m³/24h)	70-80cbm
Veneer transport speed	5-22m/min，16A chain
Hot air blower	Power:5.5KW（11pc）
Traction motor	Power: 7.5KW，frequency control（2pc）
Cold air blower	Power: 5.5KW（1pc）
Air intake fan	Power : 11KW（2pc）
6 ton biomass burner	Power: 16.5KW
Total power	120KW
Actual electricity consumption	About 84kwh per hour
Covered Space of the whole machine	50M X 9M X 3M
