Paper Faced Gypsum Board Machinery

Shine Gypsum Board Production Line: Precision Engineered for Uncompromising Quality and Efficiency

In the world of modern construction, gypsum board stands as a fundamental material, enabling faster builds, superior finishes, and innovative designs. Behind every high-quality panel lies a complex, integrated production system where precision, reliability, and intelligent engineering are paramount. Shine proudly offers state-of-the-art gypsum board manufacturing lines that embody this principle, transforming raw gypsum into premium finished products through a seamless, optimized, and technologically advanced process. Our solutions are not merely collections of machinery; they are cohesive, high-performance systems engineered for maximum output, consistent quality, and long-term operational excellence.

The Core of the Process: A Symphony of Precision Stages

A Shine production line orchestrates the complete journey from raw material to packaged board with flawless synchronization, ensuring each stage contributes to the final product's integrity.

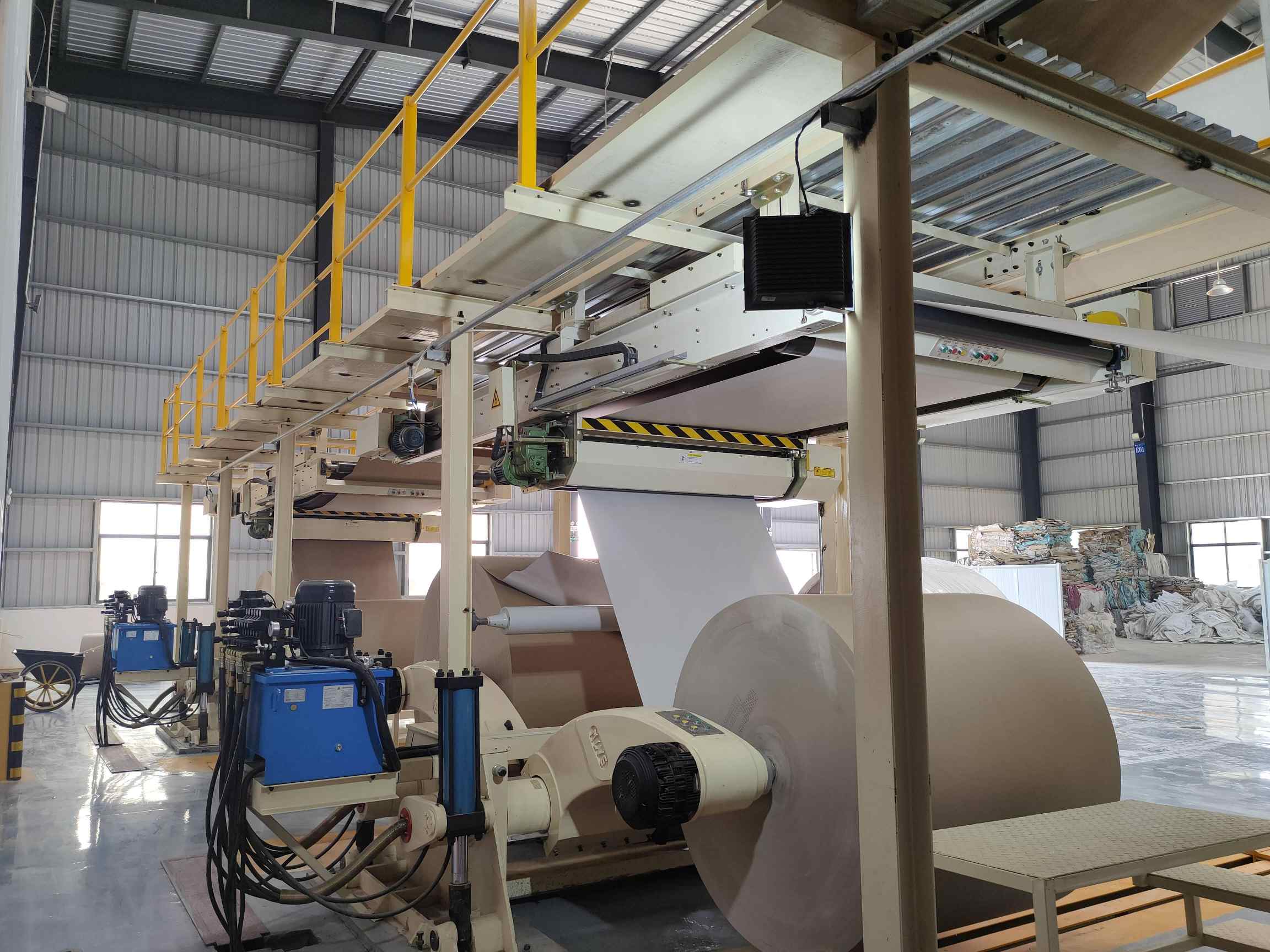

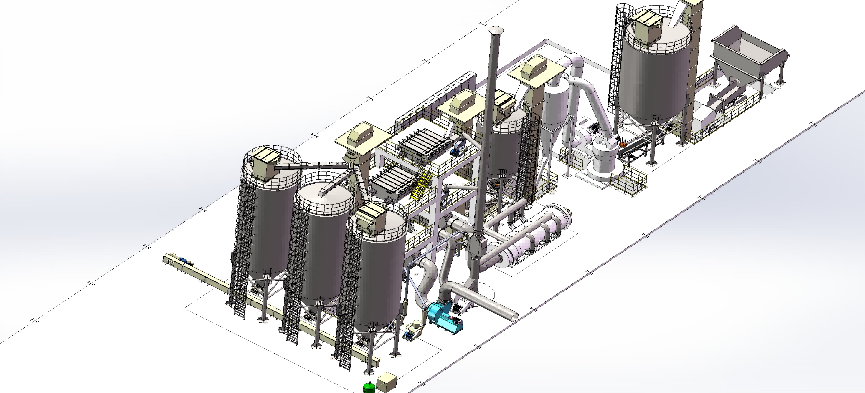

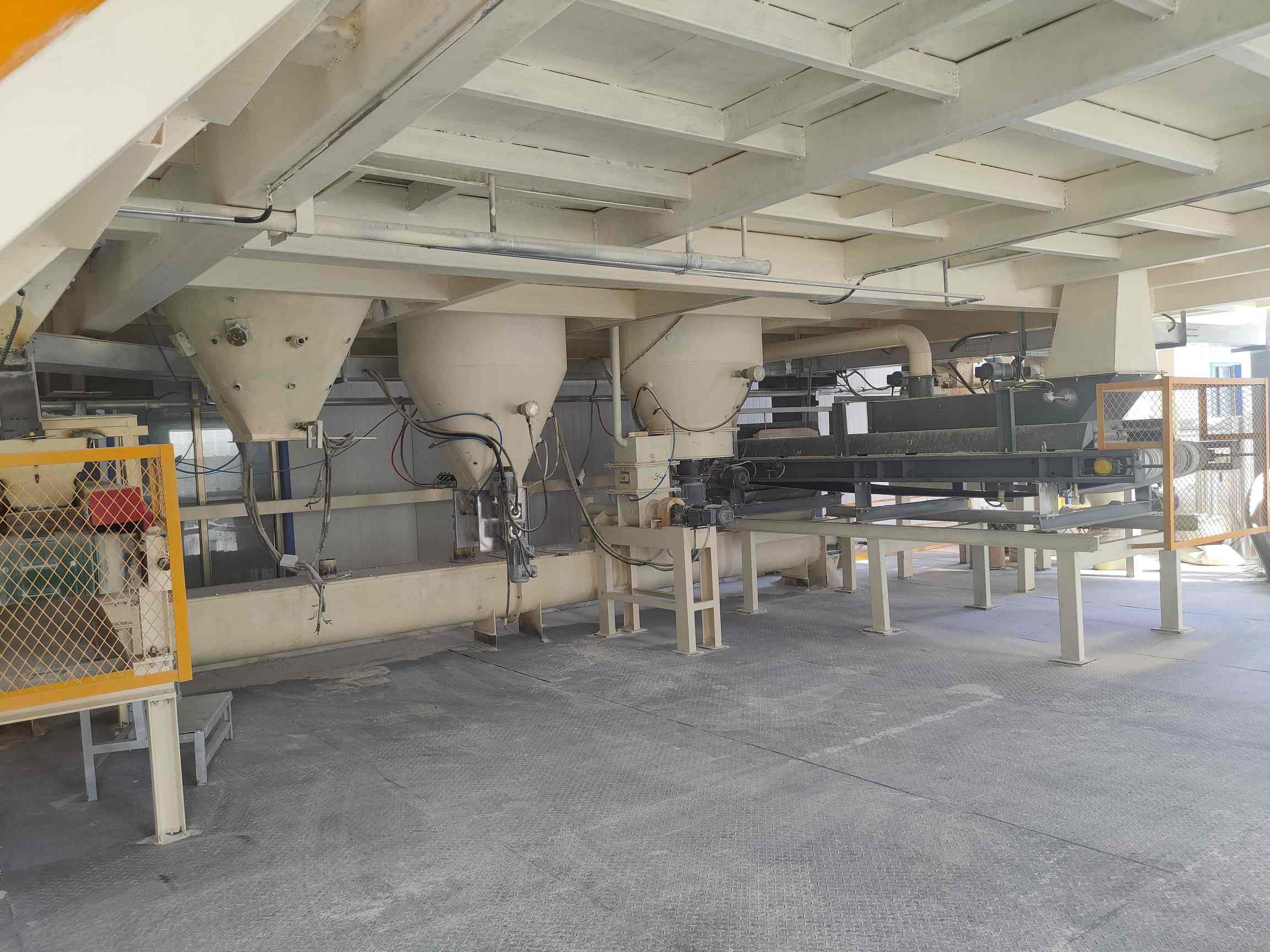

The journey begins with Raw Material Preparation and Handling. We utilize robust crushing, calcining, and grinding systems to process natural or synthetic gypsum (FGD, Phospho-gypsum) into a consistent, high-purity stucco. Our precise batching systems for additives—foaming agents, accelerators, retarders, starch, and reinforcing fibers—ensure the exact formulation for desired board properties like weight, strength, and fire resistance is achieved every time. Simultaneously, the facing paper is fed from precision unwinders, conditioned, and trimmed, ready for formation.

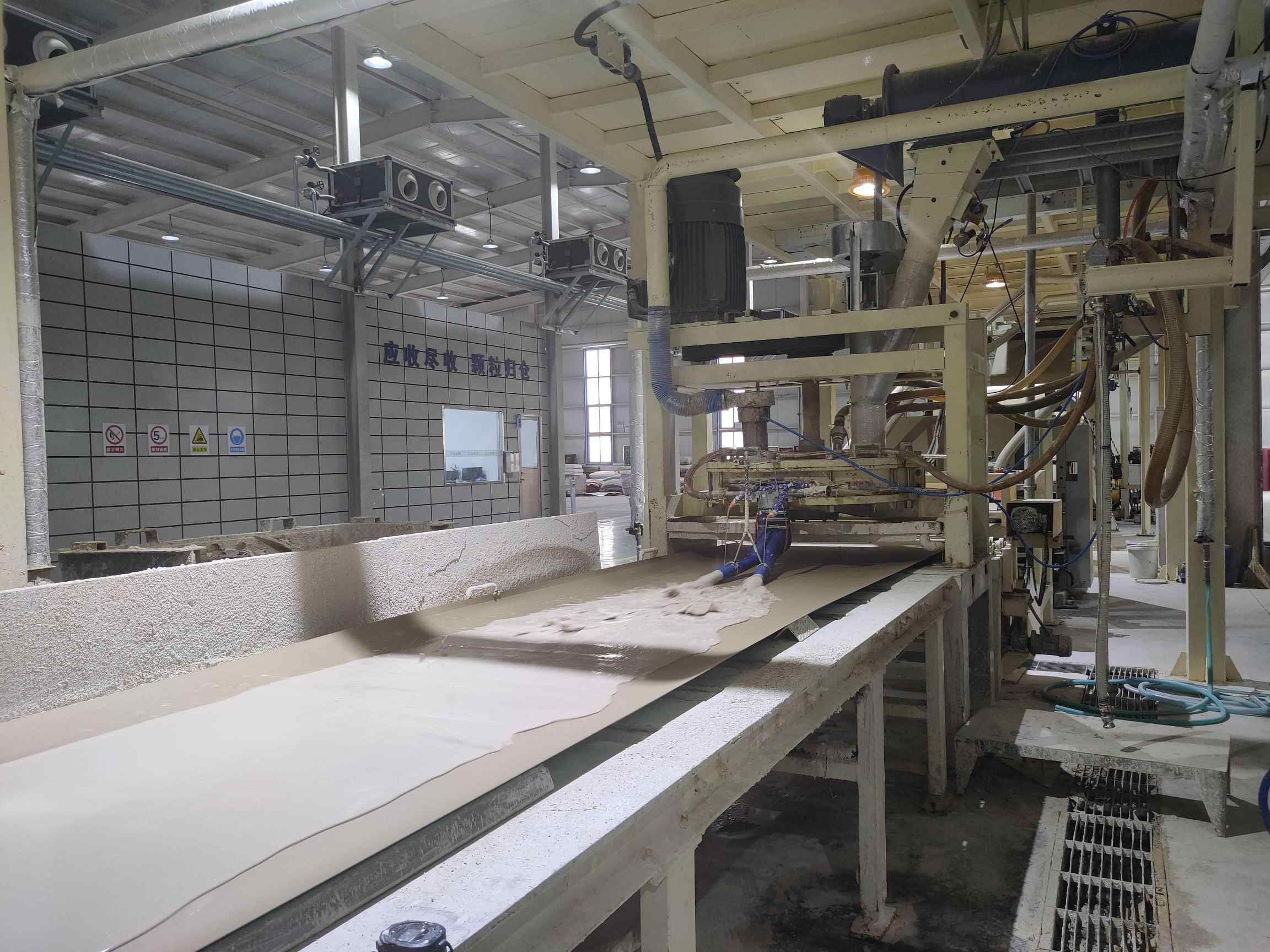

The heart of the line is the Continuous Forming Station. Here, the mixed slurry is evenly distributed onto the bottom sheet of paper. The top sheet is precisely laid over it, and the "sandwich" passes through a forming station and edge folders to create a continuous, wet board slab with perfectly defined edges. Shine’s forming technology is renowned for its exceptional accuracy in slurry distribution and paper alignment, which is fundamental for consistent board thickness, density, and edge integrity, eliminating costly waste.

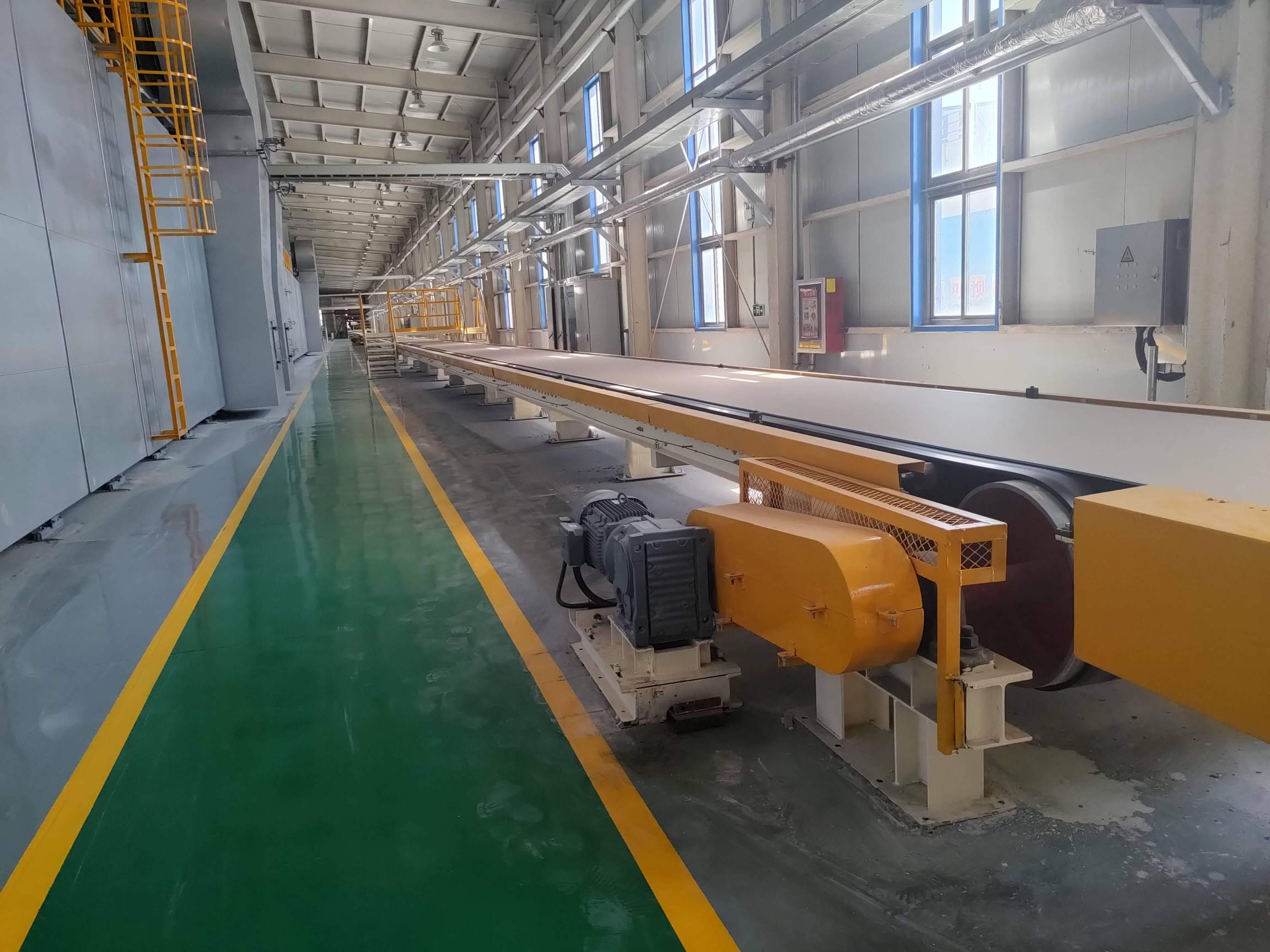

Immediately after forming, the board enters the Setting and Cutting phase. The continuous slab moves on a long, precisely controlled conveyor belt, allowing the stucco to rehydrate and crystallize, gaining its initial "green" strength. Our process control ensures optimal setting time. Once set, a high-speed, multi-wire cutting system or rotary cutter slices the continuous slab into precise customer-specified lengths with clean, burr-free edges, ready for drying.

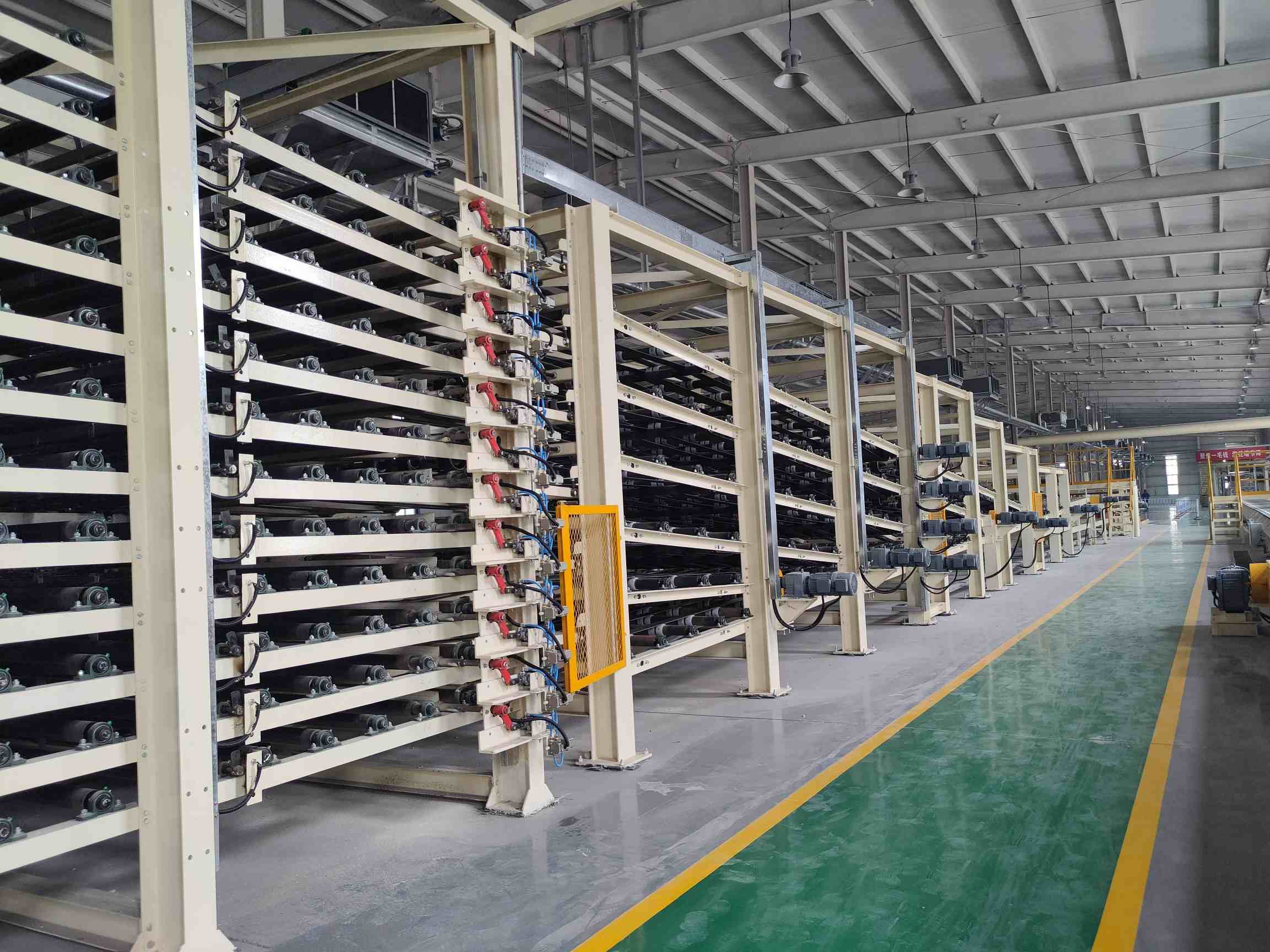

Drying is perhaps the most energy-intensive and critical stage for final board quality. Shine’s multi-tiered or conveyor-type drying ovens are masterpieces of thermal engineering. Employing intelligent heat distribution (gas, steam, or thermal oil), precise humidity control, and optimized airflow, they remove excess moisture uniformly without causing warping, delamination, or paper blistering. Our dryers are designed for exceptional thermal efficiency, significantly reducing energy consumption per square meter of board, a major operational cost saver.

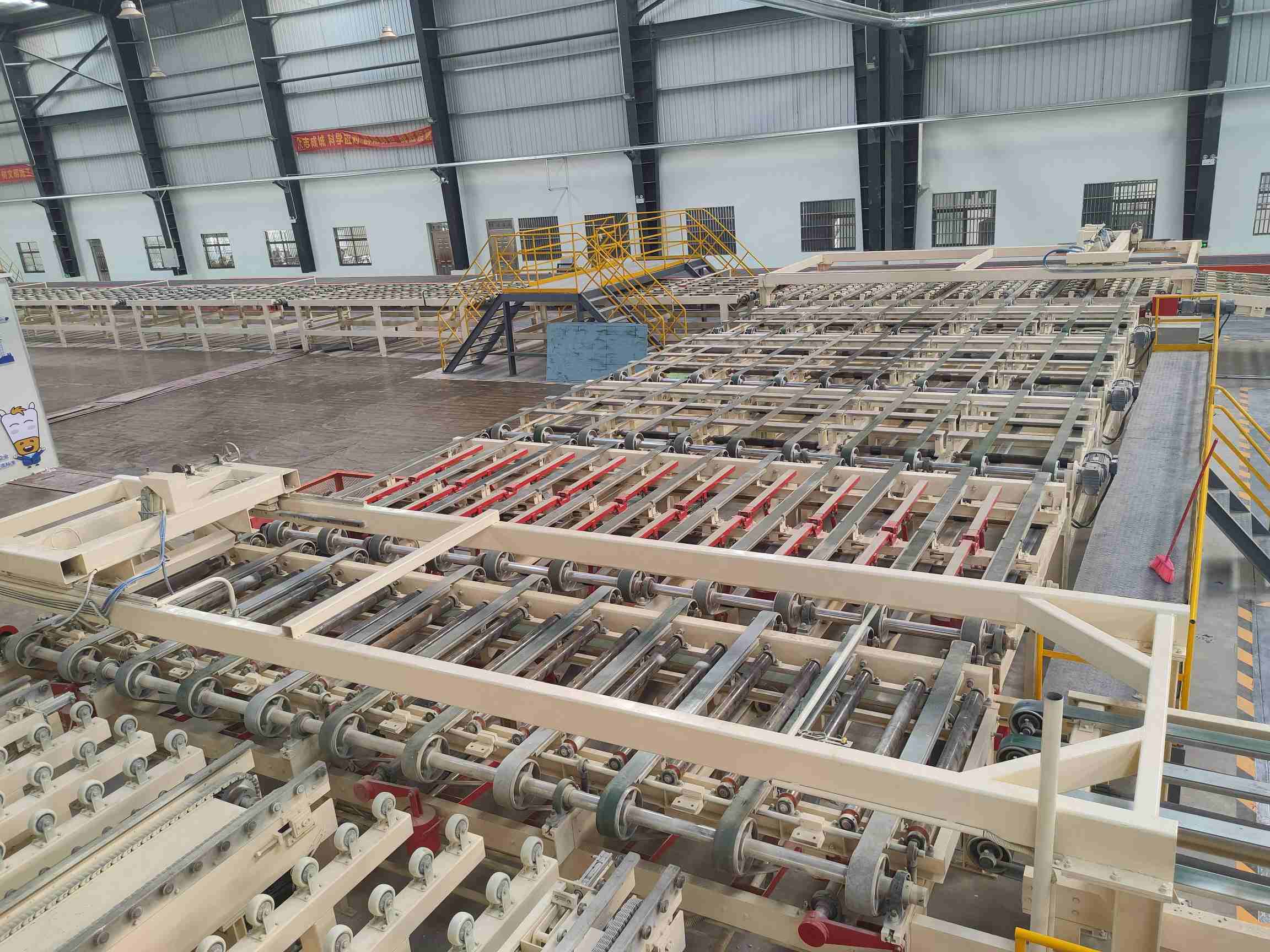

Finally, the dried boards are Finished, Inspected, and Packaged. They pass through a cooling section, are precisely trimmed and edged, and then undergo rigorous automated inspection for dimensions, squareness, and surface quality. Our automated stacking, bundling, and wrapping systems handle the boards with care, delivering neat, secure, and ready-to-ship packages.

The Shine Advantage: Engineering Excellence in Every Component

What truly differentiates a Shine production line is the embedded engineering philosophy and superior execution in every subsystem:

1. Unmatched Process Control & Automation: At the core is our advanced PLC-based control system. It integrates and synchronizes every stage—from raw material feeding and slurry formulation to drying kinetics and final packaging. Real-time monitoring of critical parameters (slurry density, board thickness, oven temperatures, speeds) ensures process stability. This results in exceptional product consistency, minimal rejects, and simplified operation.

2. Reliability Built on Robust Design: We design for 24/7 industrial operation. Key components like mixer shafts, forming plates, conveyor chains, and dryer conveyors are built with high-wear materials and oversized bearings. This robust construction minimizes unplanned downtime, extends equipment life, and ensures a stable production cadence, maximizing your return on investment.

3. Energy Efficiency as a Standard: Our drying systems incorporate advanced heat recovery technologies. Exhaust heat is often recaptured to pre-heat combustion air or process water. Optimized burner systems and superior oven insulation significantly reduce fuel consumption. In the mixing stage, our high-efficiency designs ensure complete homogenization with minimal power draw, contributing to a lower overall carbon footprint and operational cost.

4. Flexibility for Market Needs: Shine lines are configurable. Whether you need to produce standard boards, moisture-resistant (MR), fire-resistant (FR), or specialized high-strength products, our system's flexibility in batching, forming, and drying allows for quick product changeovers. We also design for various board thicknesses, widths, and lengths to meet diverse market demands.

5. Holistic Support for Success: We provide more than equipment. Our partnership includes comprehensive process know-how transfer, detailed training for your operators and maintenance teams, and continuous technical support. From initial plant layout and commissioning to spare parts management, we are invested in your operational success.

Conclusion: A Foundation for Your Growth

Choosing a Shine Gypsum Board Production Line is an investment in the foundation of your manufacturing business. It is a commitment to producing boards of superior and reliable quality that build your brand's reputation. It is a strategy for achieving high output with low waste and energy use, directly boosting your profitability. It is a partnership with an engineering team dedicated to providing a reliable, efficient, and future-ready manufacturing asset. Let Shine engineer the backbone of your productivity. Contact us to discover how our deep expertise in process design and machinery manufacturing can be tailored to build a gypsum board production line that drives your competitive advantage and grows with your business
