Gypsum Board Drying Machine

Precision Drying: The Heart of Modern Gypsum Board Production

In the high-speed, precision-driven world of gypsum board manufacturing, drying is not merely a step—it is the definitive process that transforms a fragile, wet panel into a strong, stable, and market-ready product. The drying stage is a complex interplay of heat transfer, airflow dynamics, and controlled moisture removal, directly determining the final board’s strength, dimensional stability, and surface quality. Our state-of-the-art gypsum board drying system is engineered to master this critical phase, delivering consistent, energy-efficient, and fully automated performance for modern high-capacity production lines.

A Sophisticated Heat Transfer Process: Indirect Hot Air Drying

At the core of our system lies the longitudinally arranged roller-conveyor indirect hot air drying method. This advanced approach ensures gentle yet uniform heat application, preventing surface crusting or internal stresses that can lead to warping or cracking. Unlike direct firing methods, our indirect system uses heat exchangers to generate clean, controlled hot air, which is then circulated through the drying chambers. This eliminates the risk of combustion byproducts affecting board quality and allows for precise temperature management across multiple independently controlled zones.

Integrated System Design for Seamless Operation

Our drying solution is not a standalone unit but a fully integrated system comprising four synchronized subsystems:

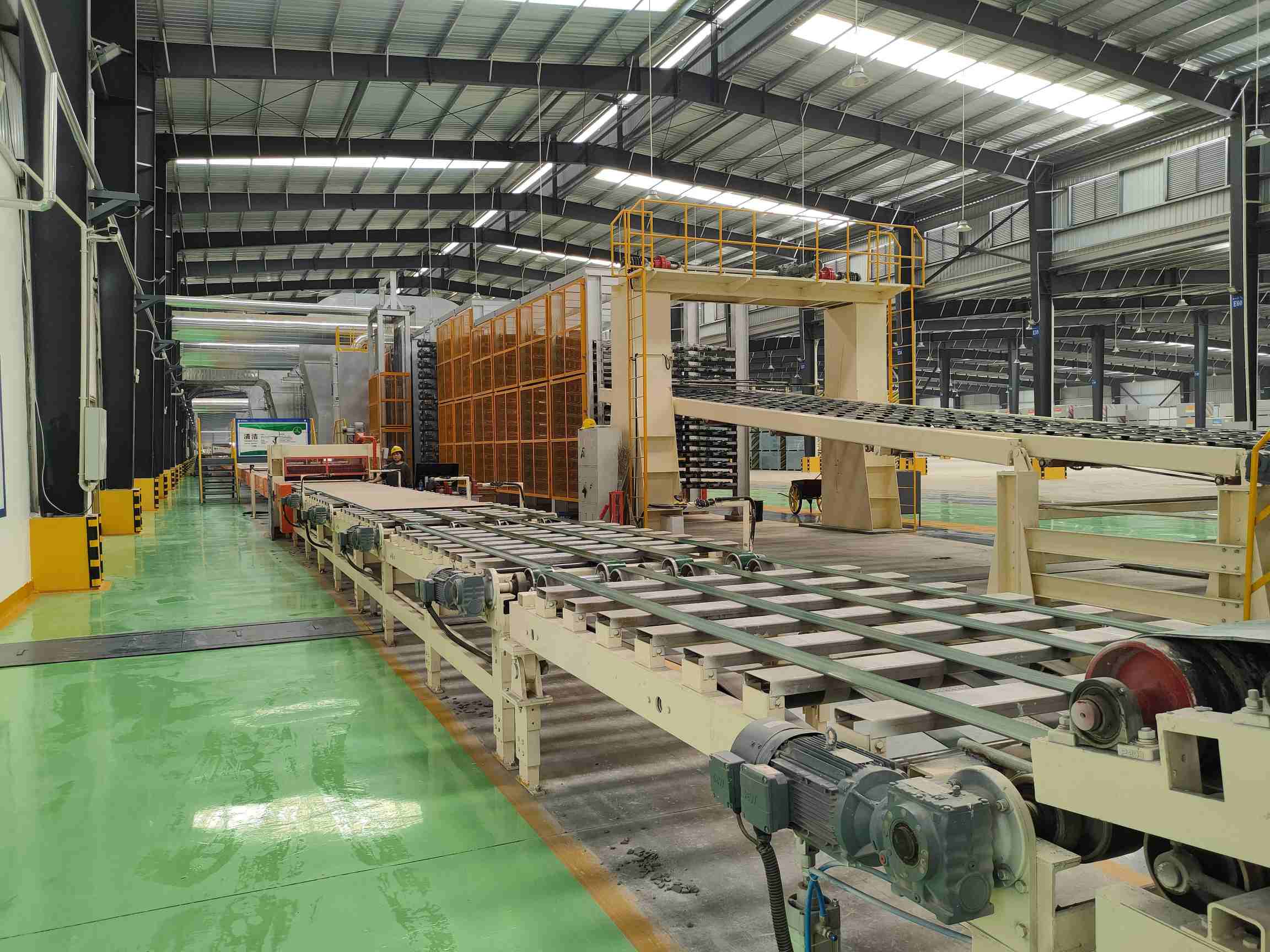

1. Feeding & Distribution System
   Following cutting and turning, boards are aligned via gathering rollers and gently accelerated before entering the dryer. The intelligent board distributor is a masterpiece of precision engineering, designed to place panels onto multiple drying tiers in sequential order without interruption or edge damage. This ensures optimal loading of the dryer’s capacity and maintains a consistent, shock-free flow into the drying chamber—a crucial factor for preserving the integrity of the still-sensitive wet boards.

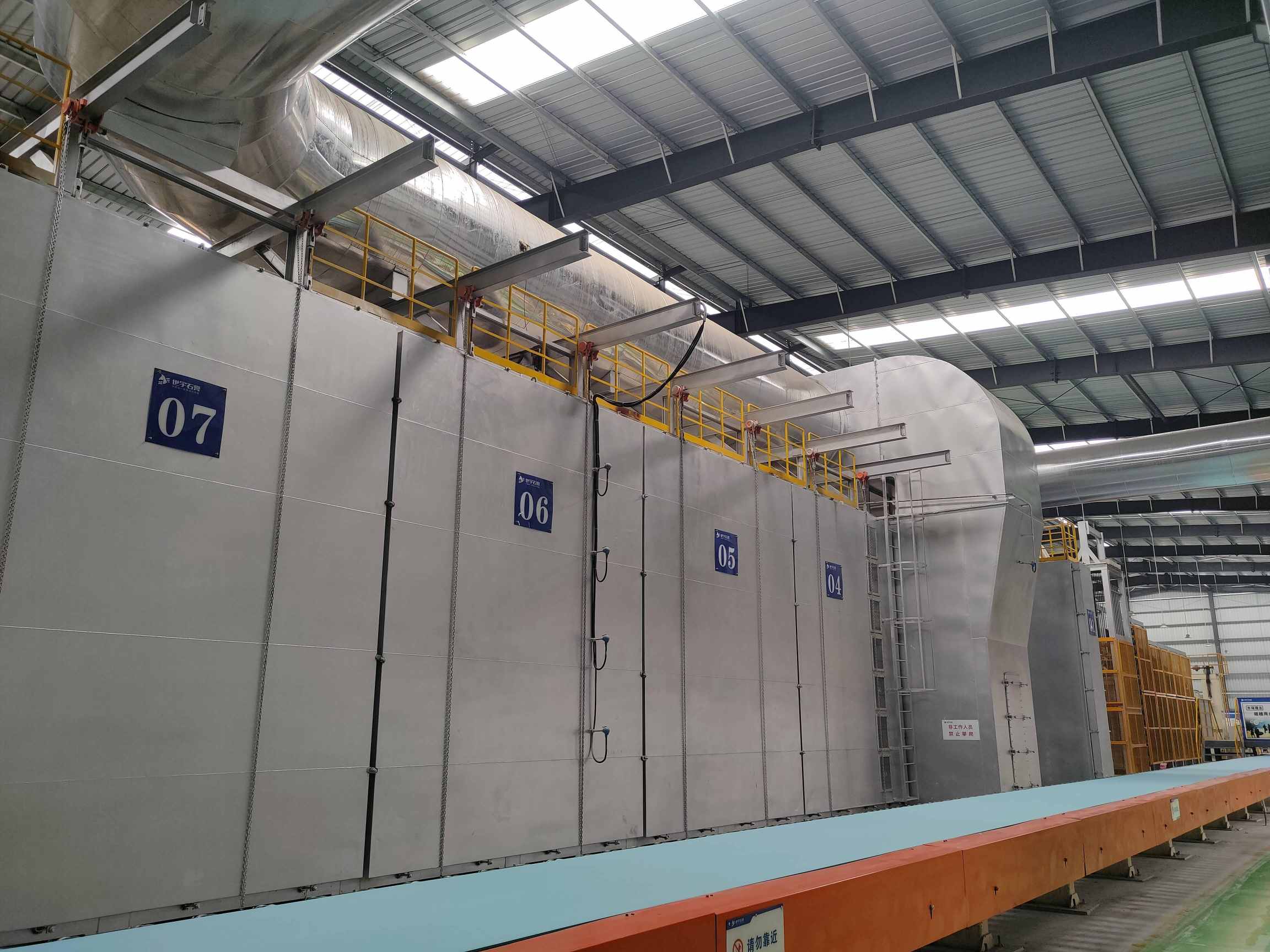

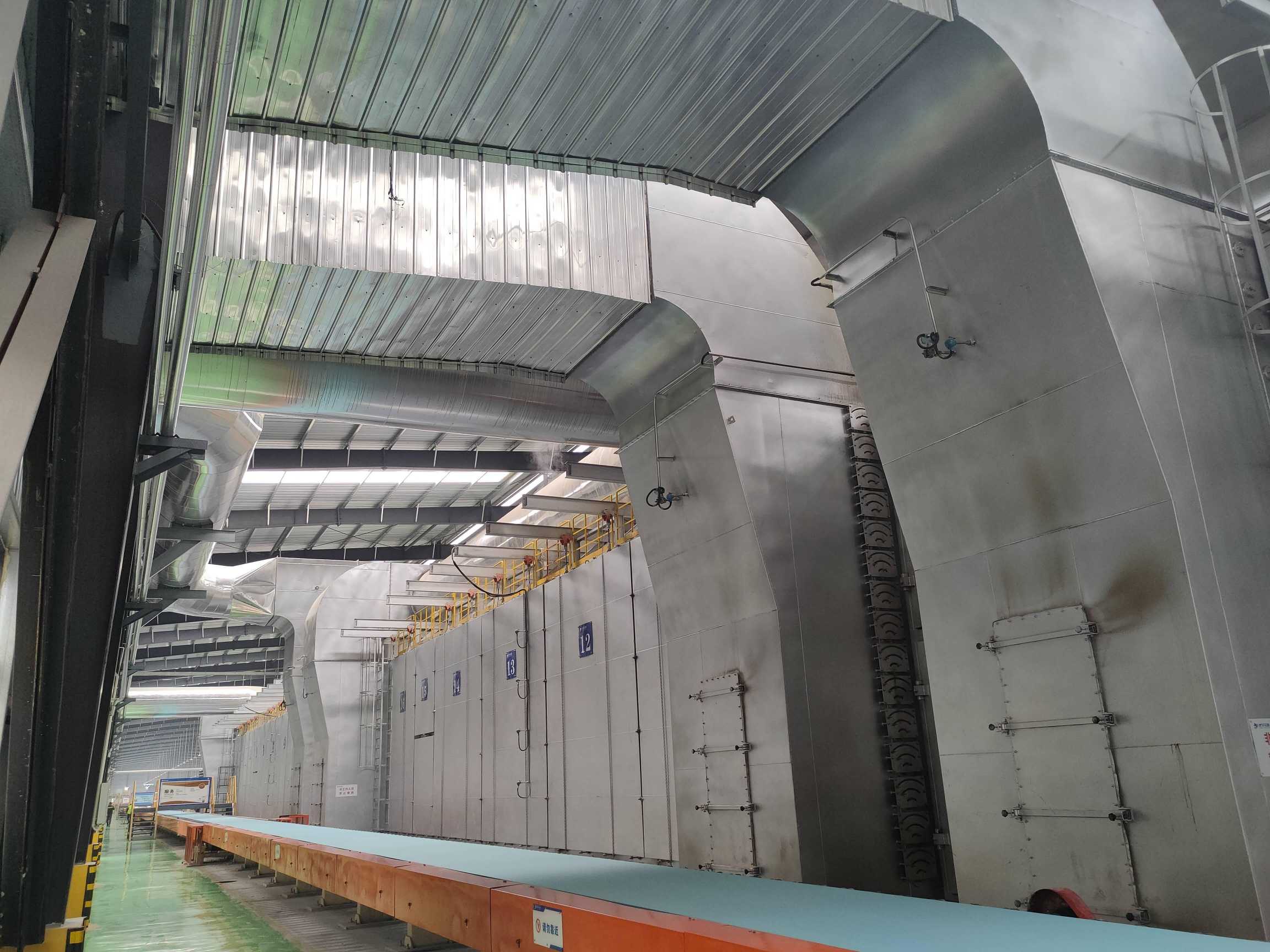

2. The Drying System: Core Technology for Controlled Moisture Removal
   The drying chamber itself is the centerpiece of the operation. It features a robust, low-vibration drive system that gently transports boards through multiple temperature zones. The heart of the thermal process is the high-efficiency heat exchanger, paired with a strategically designed fan circulation system. This combination ensures perfectly uniform horizontal and vertical temperature profiles, eliminating cold spots and guaranteeing that every board—and every part of each board—dries identically.
   The critical process of moisture removal is managed by an automated humidity exhaust system. It continuously monitors the dew point inside the chamber and actively exhausts moisture-laden air, maintaining the optimal driving force for evaporation. The ultimate result is a finished board with a precisely controlled moisture content between 2% and 3%—the ideal range for strength, workability, and shelf stability.

3. Intelligent Control & Monitoring
   True precision is achieved through automation. Our system is equipped with a comprehensive network of temperature, humidity, and pressure sensors throughout all drying zones. This data is fed in real-time to a central PLC, which dynamically adjusts two key parameters:

• Board Conveying Speed: The drive system’s speed is fine-tuned to optimize residence time in each thermal zone based on actual drying kinetics.

• Dehumidification Rate: The exhaust fan speeds are modulated to control the chamber’s absolute humidity.
  This closed-loop control ensures perfect drying quality regardless of minor fluctuations in initial board moisture or ambient plant conditions, guaranteeing batch-to-batch consistency.

4. Unloading & Transfer System
   The final stage is as carefully engineered as the first. The automated unloader, equipped with its own accelerators and conveyors, delicately and systematically unloads dried boards from each tier of the dryer. Guided by PLC logic and positional sensors, it manages the orderly exit of boards, preventing jams or collisions. The boards are then accelerated and smoothly transferred to the downstream 2# transverse section for finishing, packaging, and dispatch.

Why Our Drying System Delivers Unmatched Value

• Uncompromising Quality: Achieves uniform final moisture content (2%-3%), ensuring superior board strength, nail-holding capability, and resistance to sagging.

• Energy Efficiency: The indirect hot air design, coupled with optimized heat recovery from the exhaust, reduces energy consumption per unit by a significant margin.

• Production Stability: Robust construction and intelligent control minimize unplanned downtime, while the automated distribution and unloading systems enable continuous, high-throughput operation.

• Operational Intelligence: The system provides full process transparency, data logging, and remote monitoring capabilities for proactive maintenance and process optimization.

In the competitive gypsum board market, the quality of your product is irrevocably defined in the dryer. Our drying system provides the technological backbone to produce superior, consistent boards day after day. It’s more than just equipment—it’s your guarantee of quality, efficiency, and profitability.
