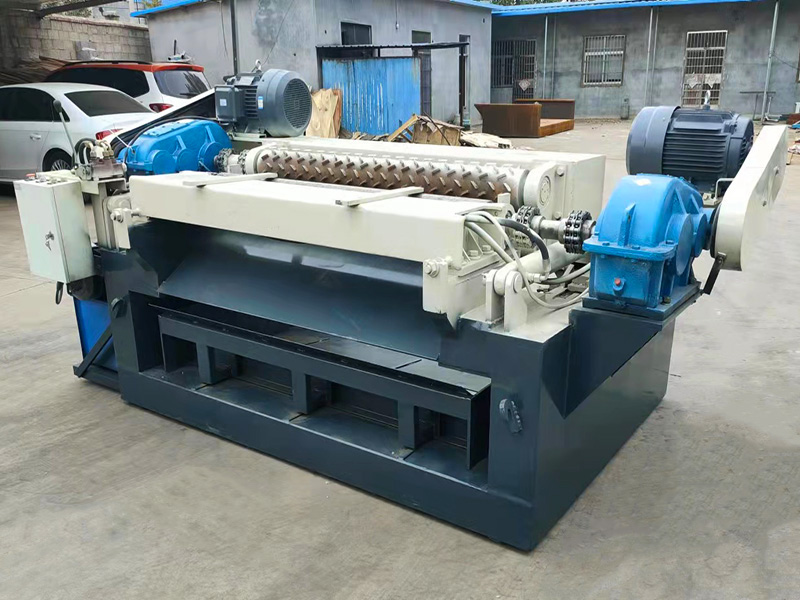

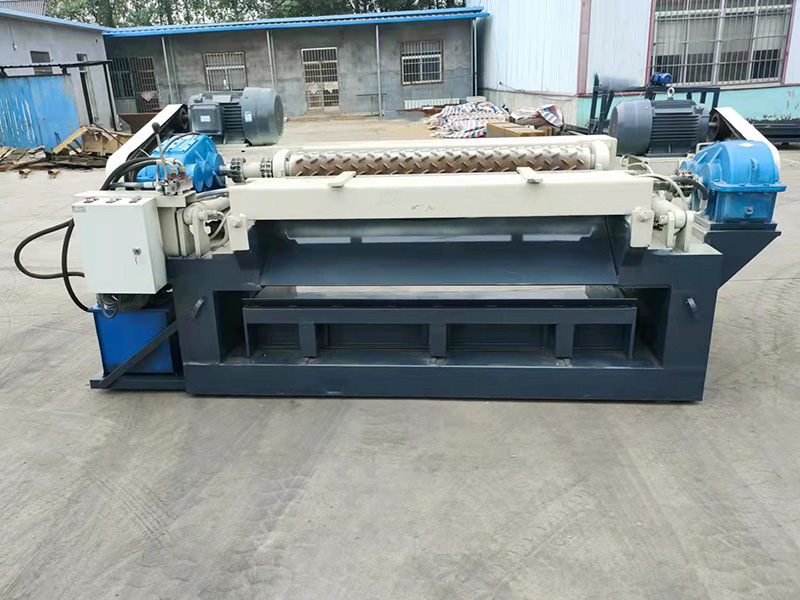

Log rounding debarker is used for peeling off the log skin and make the raw log to be round,after debarking it will be easy for the peeling lathes to peel and the veneer thickness will be even without big variation,also can increase the peeling lathes working life.The feeding motor is 11kw servo motor. It can guarantee stable machine running, stable rotatory peeling speed and accurate veneer thickness. So the machine can produce high quality veneer.
Product Parameters of Log Debarker
Type | Log Debarking Machine |
Round log length (mm) | 1300mm |
Round log diameter (mm) | maximum 600mm-wooden core 80mm |
Find circle thickness range (mm) | 1mm-4.0mm |
Host line speed (m/min) | 50m |
Main and auxiliary motor power (KW) | Double roller motor 11KW Single roller motor 11KW Oil pump motor 5.5KW |
Double roller roller (mm) | 180 |
Total weight (KG) | 3200 |
Dimensions (mm) | 3500mm-2100mm-1300mm |
Exhibition and Customer Visiting

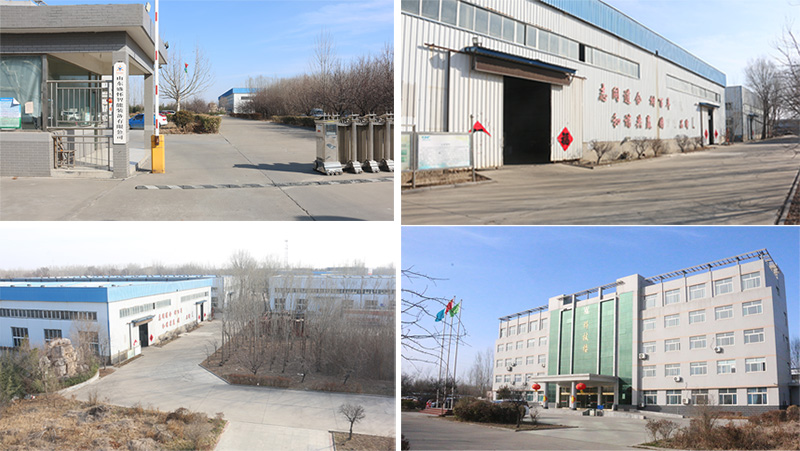

The Factory
Packaging & Shipping
