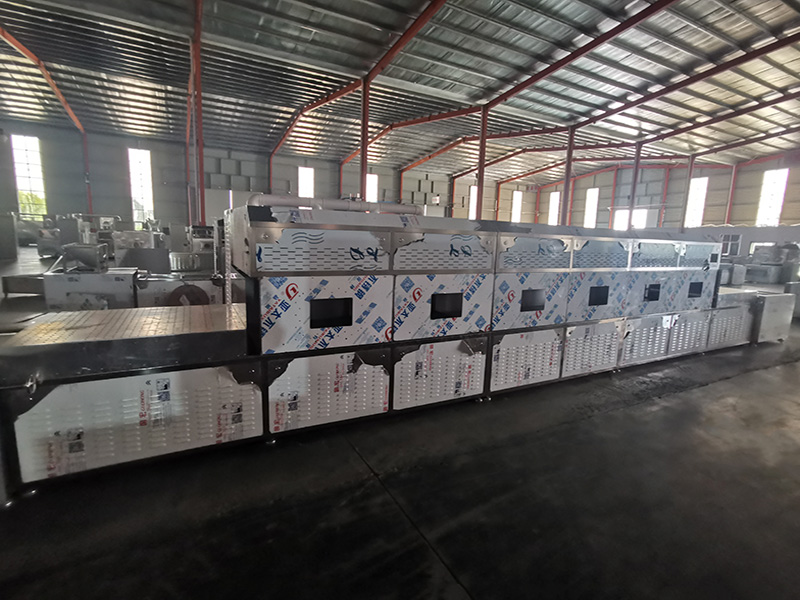

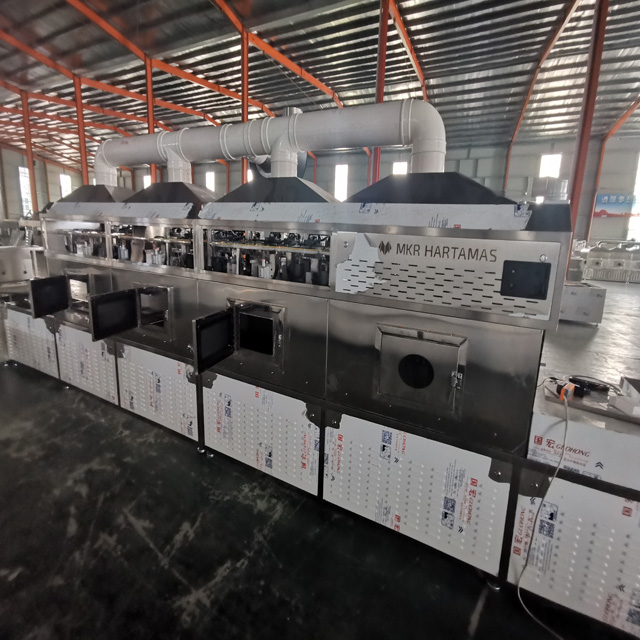

Cardboard Paper Microwave Drying Machine

Microwave drying equipment for paperboards is an advanced thermal processing technology that leverages electromagnetic waves to efficiently remove moisture from paper materials. Unlike conventional hot-air or infrared dryers, microwave systems directly heat the water molecules within the paperboard, enabling rapid and uniform drying. Below is a detailed breakdown of its core information and distinguishing features:

1. Basic Working Principle

Microwave drying operates on the principle of dielectric heating:

• Microwaves (typically at 2450 MHz, a frequency approved for industrial use) penetrate the paperboard and interact with polar water molecules.

• The oscillating electric field of the microwaves causes water molecules to vibrate rapidly, generating frictional heat internally within the material.

• This internal heat transfer eliminates the need for prolonged heat conduction from external sources, drastically reducing drying time.

2. Key Components of Microwave Drying Systems

A typical microwave drying line for paperboards includes:

• Microwave Generator: Produces high-power microwaves (ranging from kilowatts to megawatts, depending on production scale).

• Waveguide/Cavity: Directs and focuses microwaves onto the paperboard. Industrial systems often use multi-mode cavities for uniform energy distribution.

• Conveyor System: Transports paperboards through the drying chamber at controlled speeds to optimize residence time.

• Temperature/Moisture Sensors: Monitor real-time conditions to adjust microwave power and conveyor speed.

• Control Panel: Enables programmable settings for parameters like power, time, and temperature.

3. Distinctive Features of Microwave Drying for Paperboards

(1) Exceptional Drying Speed

Microwave energy penetrates deep into the paperboard (up to 5–10 cm, depending on frequency and material density), enabling volumetric heating. This reduces drying time from hours (with hot-air drying) to minutes. For example, a 10mm-thick paperboard may dry in 2–5 minutes, compared to 30–60 minutes with conventional methods.

(2) Uniform Moisture Distribution

Traditional dryers often cause surface overheating or edge drying, leading to warping or cracking. Microwave systems, however, heat the entire cross-section of the paperboard evenly, ensuring consistent moisture content (±0.5–1% variation) across the sheet. This is critical for applications like cardboard packaging, where dimensional stability is paramount.

(3) Energy Efficiency

Microwave drying minimizes heat loss to the surrounding environment, as energy is directly absorbed by the paperboard’s moisture. Studies show microwave systems can reduce energy consumption by 30–50% compared to hot-air dryers, especially for thick or dense paperboards.

(4) Eco-Friendly Operation

Microwave drying produces no direct emissions (e.g., exhaust gases or particulates) and requires minimal water for cooling, unlike steam-based systems. This aligns with global sustainability goals and reduces the need for air pollution control equipment.

(5) Precise Process Control

Modern microwave dryers are equipped with PLC (Programmable Logic Controller) systems and real-time sensors, allowing operators to adjust parameters (power, conveyor speed, temperature) dynamically. This flexibility accommodates varying paperboard thicknesses (from 0.5mm to 10mm), moisture contents (10–60%), and production speeds (up to 100 m/min).

(6) Minimal Material Damage

Unlike hot-air dryers, which can scorch or discolor sensitive paper stocks (e.g., recycled or coated paper), microwave drying operates at lower surface temperatures (typically <80°C). This preserves the paper’s texture, color, and mechanical properties (e.g., tensile strength).
