Roller type veneer drying machine utilizes the latest international technology of pressurized contact veneer drying, which has the advantages of simple operation, safety and practicality, stable operation, easy maintenance, heat pressing- leveling--drying once completed, etc. The cyclic utilization of hot air has greatly reduced the operating costs of enterprises, improved the quality of sheet materials, and increased the production volume. The roller plays a role in ironing the veneer. After the veneer is dried, the veneer is flat and the moisture content is relatively uniform. When the veneer is located between two roller sets, the lateral direction can be freely contracted, the occurrence of cracks is reduced, and the drying quality is good. The heat dissipation process is carried out in a flat state. In the benign physical process of wood shrinkage, the veneers do not warp and deform, the breakage rate is low, and the finished product rate is high. Biomass furnace roller veneer dryer is specially designed by Shine Machinery, it can burn the waste wood directly and other biomass material, and save the energy cost greatly for the users.
Parameter Model |
DHS20M
| DHS24M | DHS28M | DHS32M | DHS36M | DHS40M |
Work width（m） | 3 | 3 | 3 | 3 | 3 | 3 |
Deck | 1 | 1 | 1 | 1 | 1 | 1 |

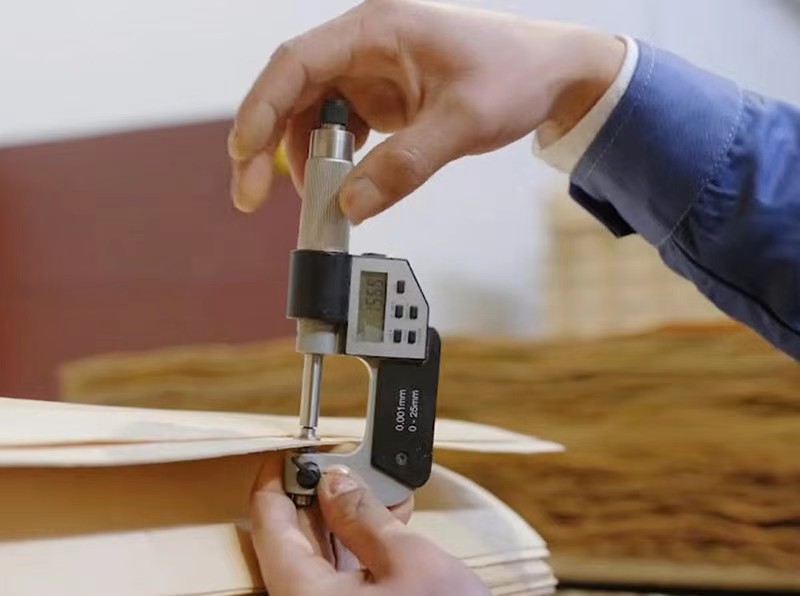

Veneer thickness（mm） | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 |
Heating area （m） | 16 | 20 | 24 | 28 | 32 | 36 |
Cooling area (m) | 4 | 4 | 4 | 4 | 4 | 4 |
Initial water content(%) | 50-80 | 50-80 | 50-80 | 50-80 | 50-80 | 50-80 |
Finished water content(%) | 10 | 10 | 10 | 10 | 10 | 10 |
Drying capacity (m³/h) | 0.5-0.65 | 0.65-0.8 | 0.8-1 | 1-1.2 | 1.15-1.35 | 1.3-1.5 |
Heat exhaustion（10000 kcal） | 17.5-23 | 23-285 | 28-35 | 35-42 | 40.25-47.25 | 45.5-52.5 |
Traction motor power(kw) | 7.5 | 7.5 | 5.5 | 5.5 | 5.5 | 5.5 |
Hot air fan power (kW) | 7.5*4 | 7.5*5 | 7.5*6 | 7.5*7 | 7.5*8 | 7.5*9 |
Air cooling fan power（kW） | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Total power (kW) | 45 | 52.5 | 58 | 65.5 | 73 | 80.5 |
Overall size LxWxH（m） | 20*4.5 | 24*4.5 | 28*4.5 | 32*4.5 | 36*4.5 | 40*4.5 |
1. The veneer, after drying in the Shine veneer dryer, is smooth, and the moisture content is uniform. The high-temperature drum has direct contact with the wet veneer for heat transfer, and the heat efficiency is high, the heat loss is a small, and heat loss. The selling price for veneer dried by roller veneer dryer is higher than natural drying.
2. The roller veneer drying machine adopts frequency conversion to adjust feed speed according to your veneer thickness and moisture content to achieve an ideal drying effect.
3. Shine roller veneer dryer covers a small area, has less ancillary equipment, is convenient for transportation, quick installation, and can be put into use quickly and conveniently.
4.Standardized production models can make different sections or decks according to different capacity requirements, which can meet different customers' requirements.
The roller veneer dryer can be delivered in containers
Shipment time is about 20-30 days after receipt of the deposit
Why choose Shine biomass burners?
Patented technology—industry-leading combustion efficiency, eliminating fuel waste.
Peace of mind and durability—mean time between failures (MTBF) > 8,000 hours.
One-stop service—providing fuel compatibility testing, installation, commissioning, and training.
