automatic knife grinding machine

Category：

knife grinder machine
Brand：

SHINE
Browse number：

916
Release time：

2024-12-23 14:11:58
E-mail:info@sdshinemachinery.com

Detailed Description

The grinding head part of the machine tool adopts rapid hoisting device, which makes the replacement of the grinding segment more convenient and rapid, improves the operational efficiency, and reduces labor intensity. The thickened ball screws inside work with the double nuts to adjust the axial clearance of the screw rods. The grinding head adopts the grinding machine motor of national standard and is reasonably designed to improve the grinding precision and prolong the service life.

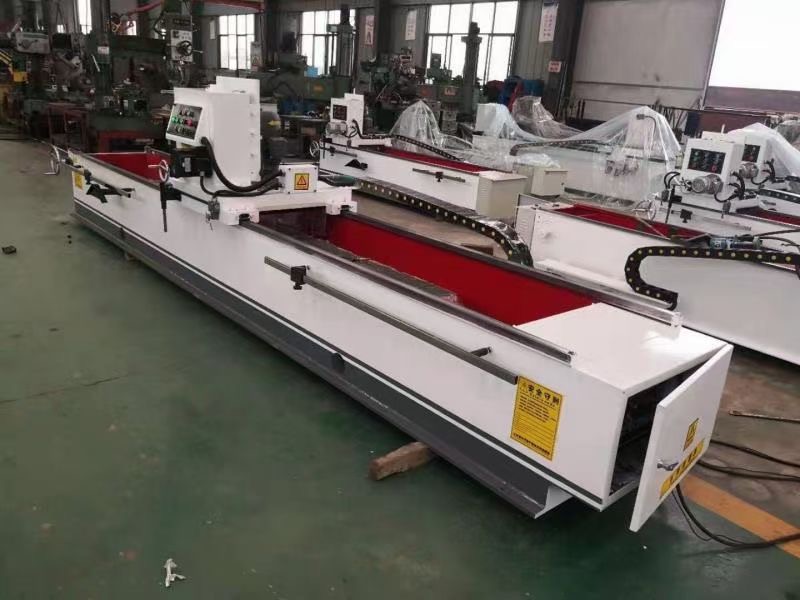

knife grinding machine.jpg

Product Parameters of knife grinding machine

Maximum Grinding Length	3600mm
Area of Working Bench: Length x Width	3590x180（200）mm
Adjustable Angle of Operating Cutter Table	± 90°
Power of Grinding Head Motor	15KW
Gross Power	About 18.5kw
Reciprocating Speed of Grinding Speed	About 0-20/min(Frequency conversion can be adjusted at will)
External Dimension(mm)	6200x1500x1500mm
Total Weight	About 6000Kg
