Can We Recycle Old Drywall Efficiently?

2026-06-11 14:33:52

As the global construction industry accelerates its transition toward a circular economy, the disposal of construction and demolition waste has emerged as a critical environmental and logistical challenge. Among the various waste streams, gypsum board—commonly known as drywall—represents a significant volume. Every year, millions of tons of off-cuts, demolition debris, and rejected boards end up in landfills. However, a technological revolution is quietly reshaping how we view this waste. The central question for modern manufacturers and recyclers is: How do we efficiently recover high-purity gypsum from discarded boards? The answer lies in advanced mechanical separation technologies that transform waste into valuable raw materials.

At the heart of this recycling process is the principle of material heterogeneity. A standard gypsum board consists of approximately 80–85% calcined gypsum core (calcium sulfate hemihydrate) and 15–20% facing paper made from recycled kraft paper. The goal of the recovery process is to break the adhesive bond between these two components and separate them based on their physical properties—brittleness versus flexibility and density differences.

The most effective and industrially adopted method is the Mechanical Crushing, Attrition Milling, and Air Classification process. This dry separation technique avoids the high water consumption and effluent treatment issues associated with older methods. The journey begins with primary shredding. Large sheets of waste drywall are fed into heavy-duty shredders or jaw crushers. These machines reduce the bulky panels into manageable fragments, typically ranging from 50 to 150 mm. This initial size reduction is crucial for exposing the gypsum core and preparing the material for the next, more delicate stage.

Following coarse crushing, the material enters the core of the operation: the attrition mill or smooth roll crusher. This is where the magic happens. Unlike impact crushers that might pulverize everything indiscriminately, attrition mills use friction, shear, and compression forces to "scrub" the material. Because the gypsum core is exceptionally brittle, it fractures and crumbles into small granules under pressure. Conversely, the paper backing, being fibrous and flexible, tears into larger flakes or twists into ropes but does not grind into powder. This selective size reduction effectively achieves the initial de-bonding of gypsum and paper.

Once the materials are separated by structure, they must be separated by size and density. The mixture moves onto vibrating screens. Here, the finer gypsum particles fall through the mesh openings, while larger pieces of paper and unsorted clumps remain on top. However, some fine paper dust and gypsum are still mixed at this stage.

To achieve high purity, the screened material undergoes air classification. This process leverages the significant difference in bulk density between the two substances. Using controlled air flows within a classifier or cyclone separator, lighter paper fibers are lifted and carried away by the air stream, while heavier gypsum particles drop straight down due to gravity. This aerodynamic sorting ensures that the final recovered gypsum contains minimal organic impurities. Any residual fine dust is captured by a baghouse dust collector, ensuring a clean final product and preventing atmospheric pollution.

While mechanical separation dominates the industry, alternative methods exist. Some European lines utilize wet slurrying, where boards are soaked to soften the paper before mechanical agitation separates the fibers. Although effective, the need for wastewater treatment makes it less popular in regions with strict environmental regulations. Another method involves thermal decomposition, where low-temperature incineration burns off the paper. However, this is energy-intensive and is typically reserved for co-processing in cement kilns rather than dedicated recycling plants.

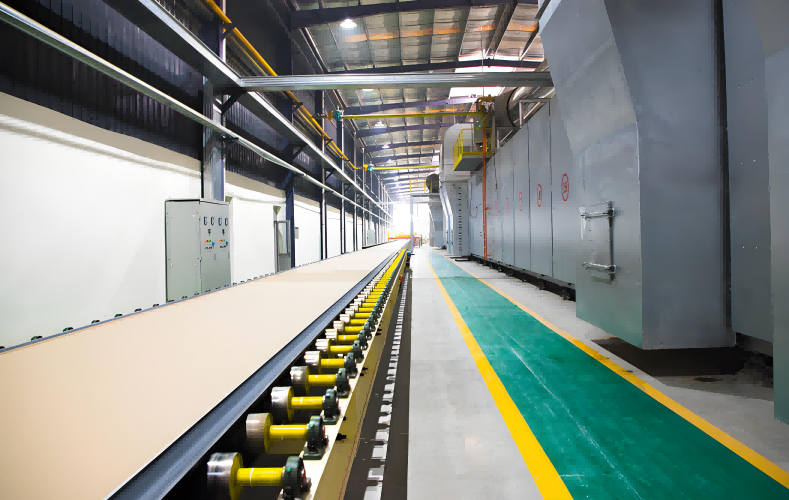

The recovered material, known as post-consumer recycled gypsum, is a valuable commodity. Its primary application is re-entering the gypsum board production line. Furthermore, this recovered gypsum finds utility in other sectors. It serves as an excellent retarder in the cement industry, slows the setting time of concrete, and can even be used as a soil conditioner in agriculture to improve drainage and reduce compaction.

In conclusion, the efficient separation of gypsum from waste drywall is no longer a theoretical challenge but a proven industrial reality. Through the synergy of shredding, attrition milling, and air classification, we can divert massive amounts of waste from landfills and reintegrate it into the manufacturing supply chain. This technological capability is essential for any company looking to enhance its sustainability credentials and thrive in an era of resource scarcity.
