Veneer roller dryer is very suitable for wet clipping processing and drying thick veneer.Veneer dryer take important role in plywood production line.Veneer Drying machine equipped with automatic veneer feeding machine and biomass burner have been used for effective and quality drying veneers with lower energy consumption.The 28m double deck veneer dryer has the 24 meters heating section and 4 meters cooling section.The veneer after drying by wood veneer dryer has the uniform moisture, flat with no buckle or end waviness, free of splits or cracks and in good condition before gluing.We can design different veneer dryer machine as customer`s project requirement.

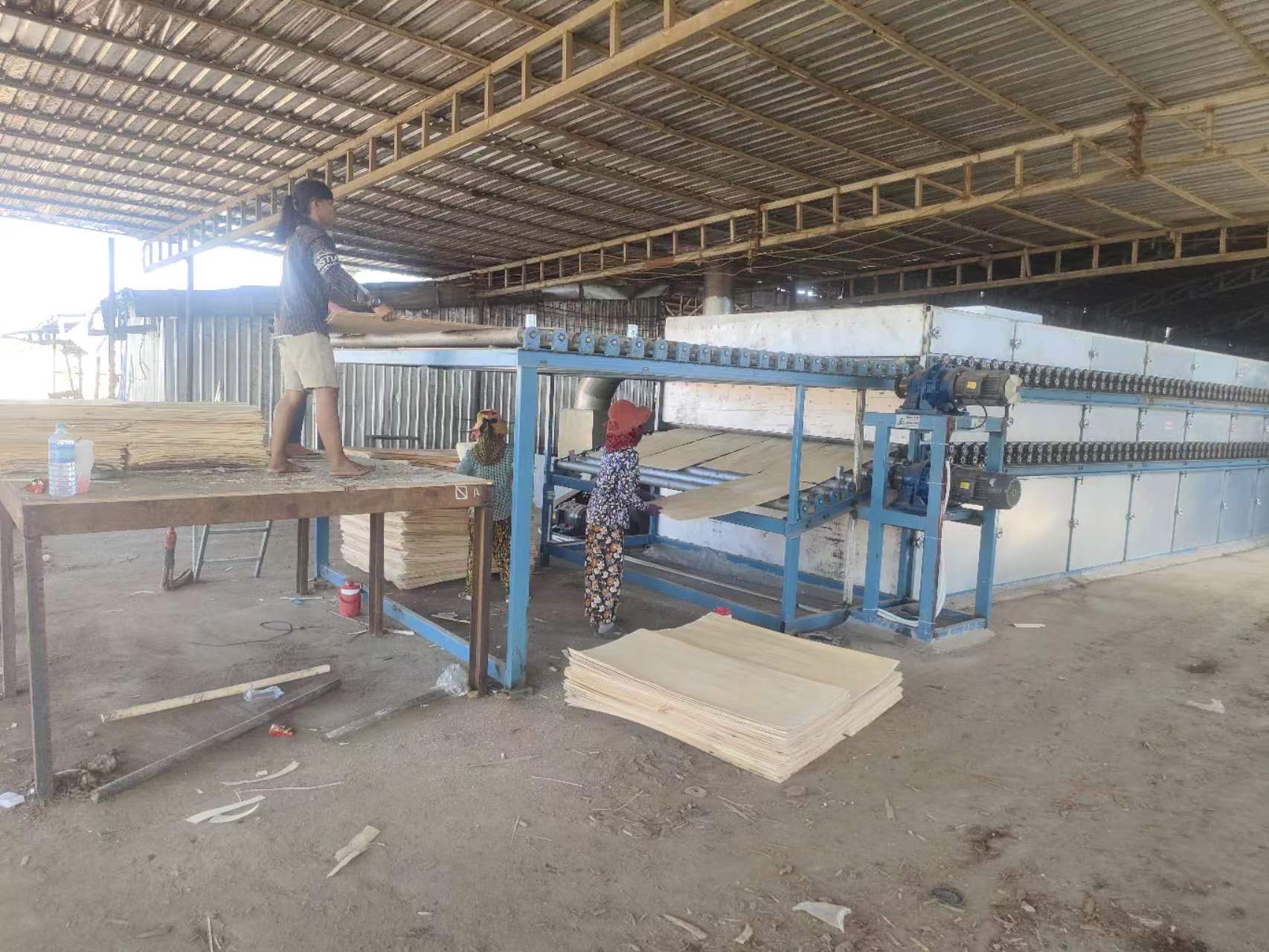

Main Pictures of 24M 2Deck Veneer Dryer Equipments
Parameter Model |
DHS20M
| DHS24M | DHS28M | DHS32M | DHS36M | DHS40M |
Work width（m） | 3 | 3 | 3 | 3 | 3 | 3 |
Deck | 2 | 2 | 2 | 2 | 2 | 2 |
Veneer thickness（mm） | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 |
Heating area （m）
| 16 | 20 | 24 | 28 | 32 | 36 |
Cooling area (m) | 4 | 4 | 4 | 4 | 4 | 4 |
Initial water content(%) | 50-80 | 50-80 | 50-80 | 50-80 | 50-80 | 50-80 |
Finished water content(%) | 10 | 10 | 10 | 10 | 10 | 10 |
Drying capacity (m³/h) | 0.8-1.1 | 1.1-1.4 | 1.5-1.8 | 1.8-2.2 | 2-2.5 | 2.4-2.7 |
Heat exhaustion（10000 kcal） | 28-38.5 | 38.5-49 | 52.5-63 | 63-77 | 70-87.5 | 84-94.5 |
Total power (kw) about | 66 | 77 | 88 | 114 | 117 | 121 |
Overall size LxWxH（m） | 26*9 | 30*9 | 34*9 | 38*9 | 42*9 | 46*9 |
